Aqua Creek f-sctxl Scout Excel Pool Lift 375 Lb

Product Description

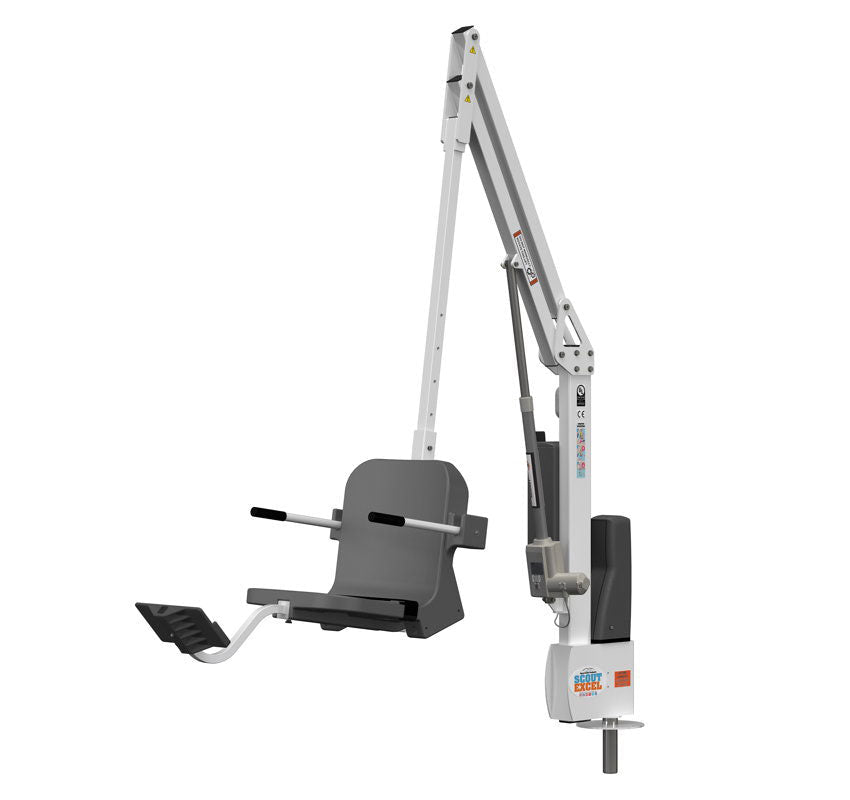

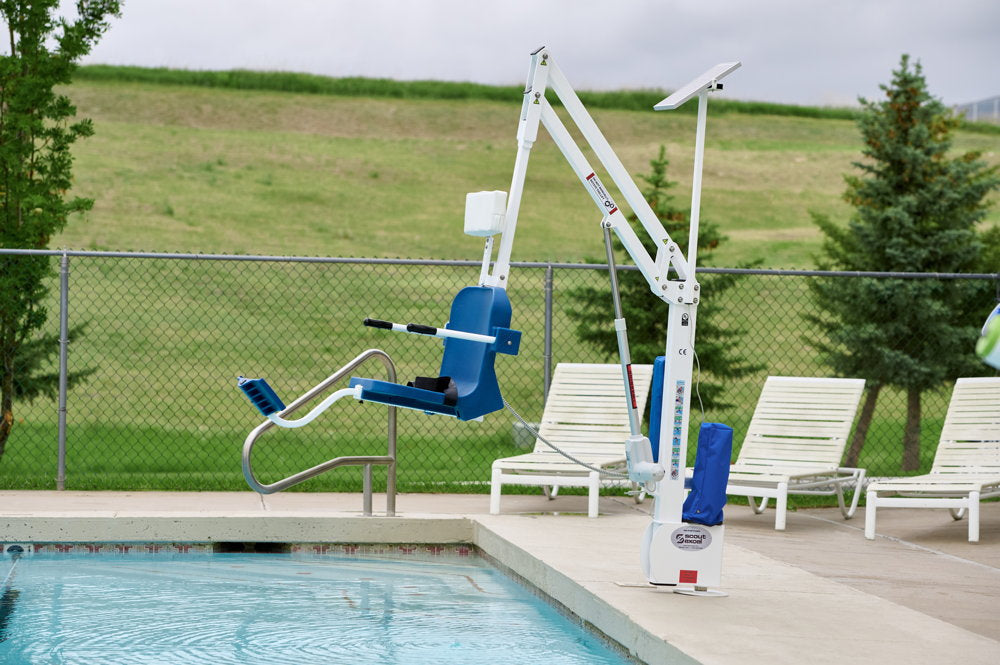

The AQUA CREEK f-sctxl is a commercial-grade ADA pool lift designed for inground pools, partially raised pools, and spas. With a 375-pound lifting capacity and full 360-degree seat rotation in either direction, it gives pool service professionals and facility installers a versatile solution for accessible aquatic entry. The frame is constructed of stainless steel with a powder coat finish for corrosion resistance in wet environments. Seat height is adjustable, and the improved base geometry allows installation further from the pool edge while still clearing spa walls and pool curbs up to 27 inches high.

The f-sctxl is suited for residential and commercial inground pool and spa installations where ADA accessibility compliance is required. It is appropriate for facilities such as municipal aquatic centers, hotel pools, rehabilitation centers, and private inground pools. The base mounts to a standard 1.9 x 6-inch stanchion anchor or Aqua Creek Anchor F-808SA. Wooden deck and paver anchors are also available. Multiple adapter options allow the lift to fit many existing anchors already in pool decks, simplifying upgrades and replacements. Color options include Blue-White, Gray-White, Tan-White, and White-White. Custom colors are available by quote.

Key Features

• 375-pound lifting capacity for a wide range of users
• Full 360-degree seat rotation in either direction for flexible pool-side positioning
• Stainless steel construction with powder coat finish for corrosion resistance
• Adjustable seat height to accommodate varied pool deck and coping configurations
• Clears spa walls and pool curbs up to 27 inches high
• Compatible with standard 1.9 x 6-inch stanchion anchors and multiple adapter options for existing anchor installations
• Optional accessories include chest strap, headrest, pull-out leg rest, extra battery, solar battery charger, transport cart, lift cover, and rescue spine board attachment

Compatibility

Mounts to a standard 1.9 x 6-inch stanchion anchor or Aqua Creek Anchor F-808SA. Wooden deck and paver anchors are available. Adapter options allow fitment with many existing anchors already installed in pool decks. Designed for inground and partially raised pool and spa installations.

Installation Notes

Installation is typically performed by a licensed pool contractor or qualified facilities technician familiar with ADA accessibility requirements. Before installation, confirm that the pool deck anchor is properly set and rated for the lift load. Power down any associated electrical systems before servicing the lift mechanism. Consult applicable local codes and ADA Standards for Accessible Design for anchor placement requirements and clearance dimensions.

Technical Specifications

• Lifting Capacity: 375 pounds
• Maximum Curb Clearance: 27 inches
• Seat Rotation: 360 degrees, both directions
• Frame Material: Stainless steel with powder coat finish
• Anchor Compatibility: Standard 1.9 x 6-inch stanchion anchor or Aqua Creek Anchor F-808SA
• Shipping Weight: 275 pounds
• Product Category: ADA Pool Lift

Standard Information

• Brand: AQUA CREEK
• Manufacturer Part Number: f-sctxl
