Aqua Creek f-mty400 Pool Lift 400 Lb Capacity No Anchor

Product Description

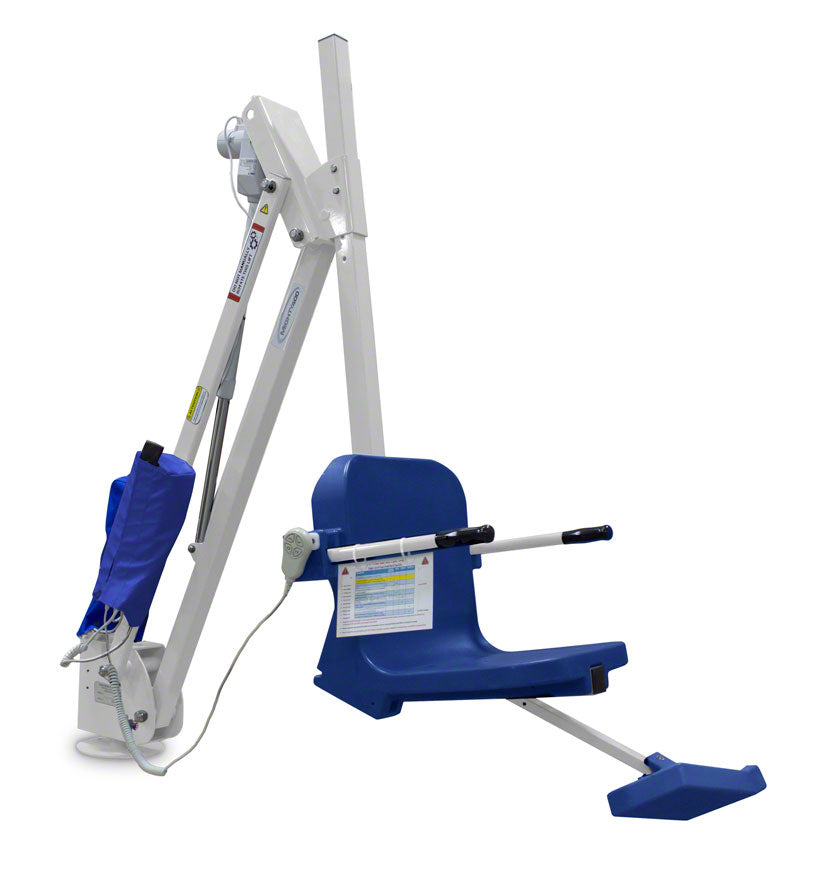

The AQUA CREEK f-mty400 is a battery-operated pool lift rated for 400 pounds of lifting capacity. It features 360-degree rotation and an adjustable height seat pole that provides up to 4 inches of additional seat adjustment in 2-inch increments. The lift is constructed of powder-coated stainless steel for corrosion resistance in aquatic environments. It includes flip-up armrests and a footrest as standard equipment. The unit ships in white with a blue seat and footrest. This lift is intended for inground installations and is designed for use in commercial and public aquatic facilities requiring ADA-compliant pool access.

The f-mty400 is suited for inground pool installations at commercial aquatic facilities, recreation centers, hotels, and similar venues where ADA-accessible pool entry is required. The lift has a water draft of 12 inches and a setback of up to 44 inches, providing flexibility across a range of deck and coping configurations. It is compatible with existing Scout and Revolution concrete anchors for facilities that already have anchor hardware installed. An anchor for pavers is available separately. Pedestal options ranging from 8 inches to 4 feet are available when additional wall clearance or non-standard gutter profiles are present. This anchor is not included with the lift; the standard anchor to purchase separately is F-808SA.

Key Features

• 400-pound lift capacity rated for demanding commercial use
• Battery-operated drive requires no hydraulic lines or external power at poolside
• 360-degree rotation for flexible deck positioning and transfer angles
• Adjustable height seat pole with 4 inches of range in 2-inch increments
• Powder-coated stainless steel construction for aquatic environment durability
• Compatible with existing Scout and Revolution concrete anchors
• Flip-up armrests and footrest included standard

Compatibility

Designed for inground pool installations. Compatible with existing Scout and Revolution concrete anchors. Pedestal accessories are available in 8-inch to 4-foot options for non-standard gutter profiles or additional wall clearance. The standard anchor sold separately is F-808SA. An anchor for paver decks is also available separately.

Installation Notes

Installation of ADA-compliant pool lifts should be performed by a qualified contractor or facilities technician familiar with ADA Standards for Accessible Design. The anchor must be set in concrete or pavers before the lift can be secured; ensure the concrete anchor is fully cured prior to mounting. Disconnect and remove the battery before performing any mechanical service or transport. Verify deck setback and water draft clearances against the 44-inch setback and 12-inch draft specifications before selecting an anchor location.

Technical Specifications

• Lift Capacity: 400 pounds
• Power Source: Battery operated
• Rotation: 360 degrees
• Seat Pole Adjustment Range: 4 inches in 2-inch increments
• Water Draft: 12 inches
• Maximum Setback: 44 inches
• Frame Material: Powder-coated stainless steel
• Standard Color: White frame with blue seat and footrest
• Shipping Weight: 301 pounds
• Product Category: ADA Pool Lift
• Anchor: Not included

Standard Information

• Brand: AQUA CREEK
• Manufacturer Part Number: f-mty400
