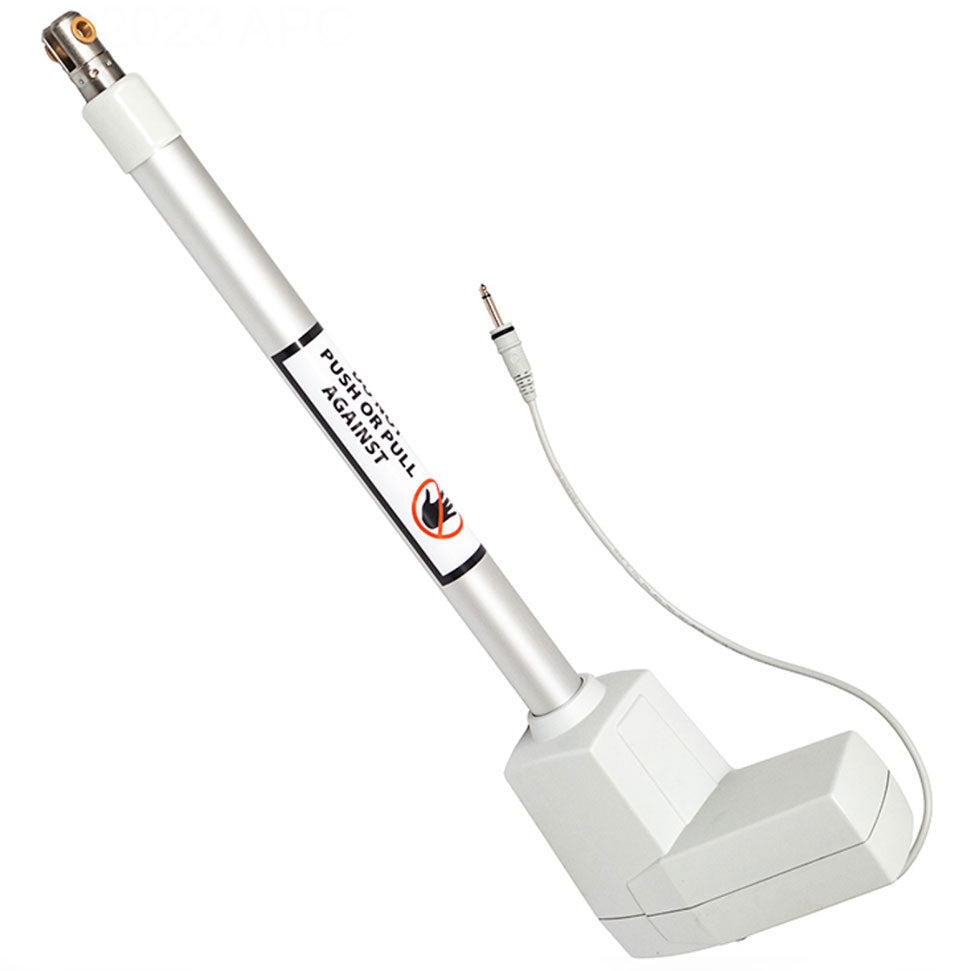

Aqua Creek f-494daa Pool Lift Actuator Replaces F-490VA4H

Product Description

The AQUA CREEK f-494daa is a replacement linear actuator designed for use with Aqua Creek pool lift systems. Rated at 400mm stroke and sourced from Linak, this actuator provides the motorized lifting force that raises and lowers the pool lift seat, allowing users to transfer safely into and out of the water. It is a direct OEM-style replacement for the discontinued or superseded part F-490VA4H. Installation is typically performed by a qualified pool service technician or facility maintenance professional familiar with ADA-compliant pool access equipment.

This actuator is compatible with multiple Aqua Creek pool lift models used in both residential and commercial aquatic facility applications. These lifts are commonly found at public pools, therapy pools, and private in-ground or above-ground pool installations where ADA-compliant access is required. The f-494daa fits the Aqua Creek Pathfinder, Ranger 2, Admiral, Scout, Elite, and Ultra pool lift models as specified by the manufacturer.

Key Features

• Direct replacement for superseded part F-490VA4H
• 400mm stroke Linak linear actuator for OEM-spec performance
• Compatible with six Aqua Creek pool lift models including Ranger 2, Scout, and Pathfinder
• Provides motorized lifting force for safe aquatic access transfer
• Designed to restore full lift functionality when original actuator fails or wears out

Compatibility

Compatible with the following Aqua Creek pool lift models: Pathfinder, Ranger 2, Admiral, Scout, Elite, and Ultra. Replaces OEM part number F-490VA4H.

Installation Notes

Power down the pool lift and disconnect the battery or power supply completely before removing the existing actuator. Installation should be performed by a qualified pool service technician or maintenance professional with experience on Aqua Creek lift systems. Refer to the manufacturer service documentation for mounting orientation and connector details specific to the lift model being serviced. Verify actuator operation through a full raise-and-lower cycle before returning the lift to service.

Technical Specifications

• Actuator Stroke: 400mm
• Actuator Manufacturer: Linak
• Shipping Weight: 17.0 pounds
• Replaces Part Number: F-490VA4H

Standard Information

• Brand: AQUA CREEK
• Manufacturer Part Number: f-494daa
