Aqua Creek f-40cbj 1-port Linak Lift Control Box

Product Description

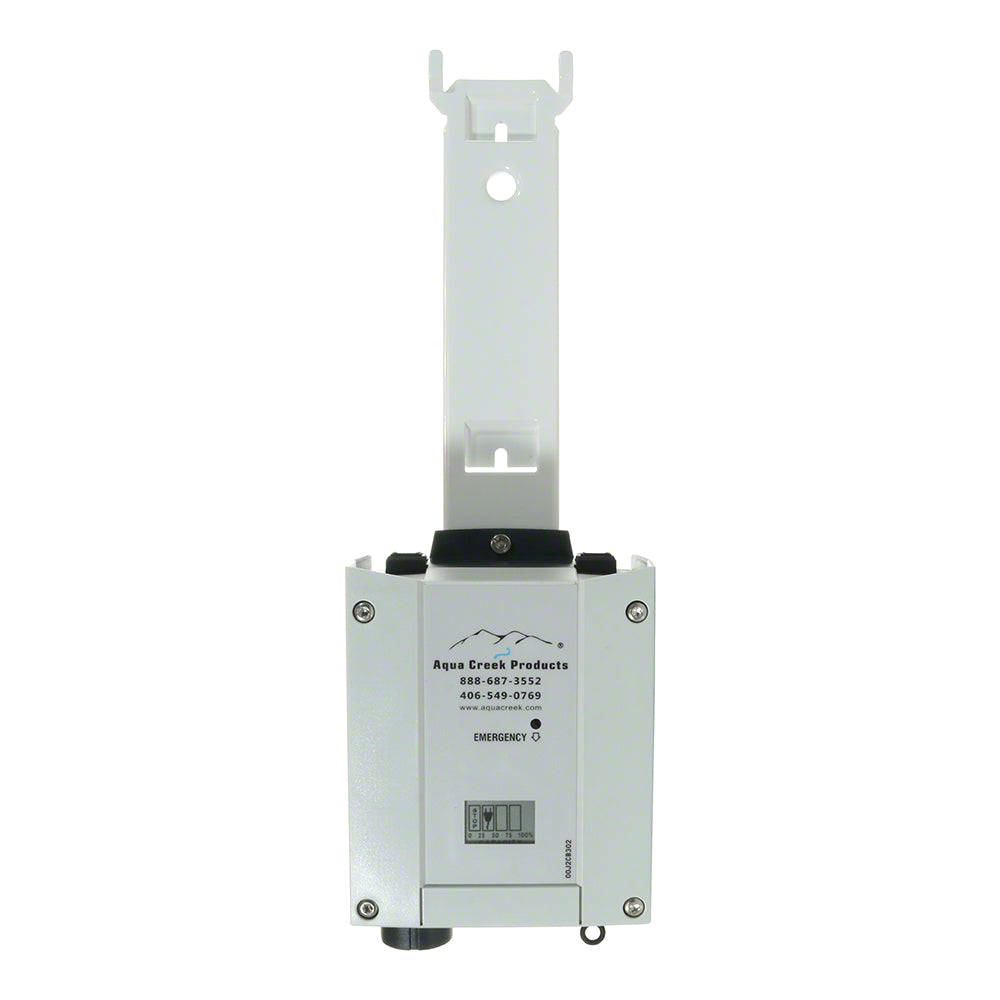

The AQUA CREEK f-40cbj is a single-port Linak lift control box designed as a direct replacement for the operating control unit on compatible Aqua Creek pool lifts. It governs all standard lift operation through the Linak actuator system and is built for lifts that do not require rotational movement. The unit includes an acoustic battery alarm that activates when the battery reaches approximately 50 percent capacity, helping technicians and service staff catch low-power conditions before a lift becomes inoperable. The package includes the control box, a mounting bracket, and a washer. Installation is performed by pool equipment technicians and service contractors.

This control box is intended for residential and commercial pool lift applications where the Linak operating system is in use. It fits single-port configurations, meaning the lift uses one actuator connection and does not incorporate rotational positioning features. The f-40cbj also provides an emergency lifting function, which allows operation in low-battery or fault conditions to safely return a user to the pool deck. Compatible lifts include the Pro Pool Lift, Ranger, Portable Pro Pool Lift, Patriot, Power EZ Lift, and Super Power EZ Lift.

Key Features

• Single-port Linak control architecture for non-rotational pool lift models
• Acoustic battery alarm triggers at approximately 50 percent battery capacity
• Emergency lifting function provides safe operation during low-battery conditions
• Includes mounting bracket and washer for direct installation
• Direct replacement for OEM Aqua Creek Linak control box

Compatibility

Designed for Aqua Creek pool lifts using the Linak operating system, including the Pro Pool Lift, Ranger, Portable Pro Pool Lift, Patriot, Power EZ Lift, and Super Power EZ Lift. Cross-reference part numbers: F-40CBJK and CBJ2U02200.

Installation Notes

Installation should be performed by a qualified pool equipment technician or service contractor familiar with ADA-compliant pool lift systems. Disconnect and remove the battery before servicing or replacing the control box to prevent unintended actuator movement. Secure the control box using the included mounting bracket and hardware, and verify all connector seats are fully engaged before restoring power. Follow applicable local codes and manufacturer service guidelines when servicing pool lift electrical components.

Technical Specifications

• Port Configuration: Single port
• Operating System: Linak
• Emergency Lifting Function: Included
• Battery Alarm Threshold: Approximately 50 percent capacity
• Included Hardware: Mounting bracket, washer
• Shipping Weight: 4.0 pounds

Standard Information

• Brand: AQUA CREEK
• Manufacturer Part Number: f-40cbj
