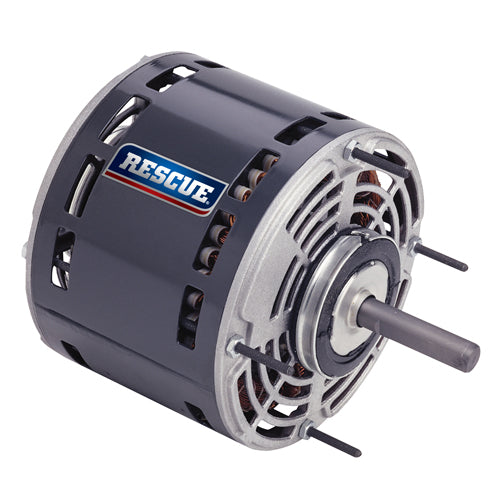

Aprilaire U.S. MOTORS 5460

U.S. MOTORS Blower Motor Direct Drive Permanent Split Capacitor 1/2 hp 115 V 7.3 A 60 Hz 4 Phase 48 Frame 1075 Rpm 1 Speed Reversible Service Factor: 1 Capacitor: 10 u
F 55/8 Inch Body Diameter 9.8 Inch Overall Length 1/2 Inch Dia x 5 Inch L Shaft Sleeve Bearing Stud Mount Mounting Position: All Angle 65.9% Efficiency 40 deg C Class B Insulation Open Air Over
� Automatic reset thermal overload protector
� Designed for use with 370 V capacitors
� Continuous duty
� High efficiency design
� Includes side shell holes for rheem units
Application: Commercial and Residential
