AprilAire 6837 12 X 20 Bottom Mount Rect Damper R6837

Product Description

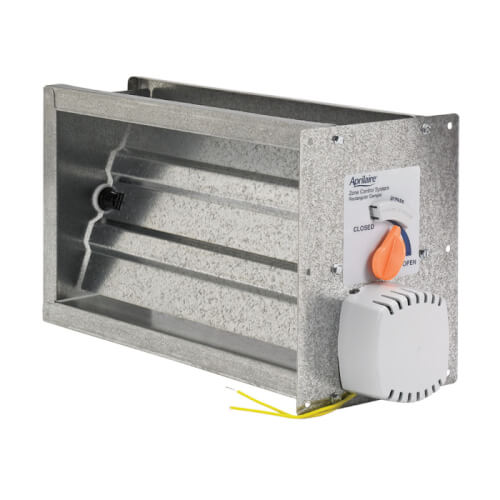

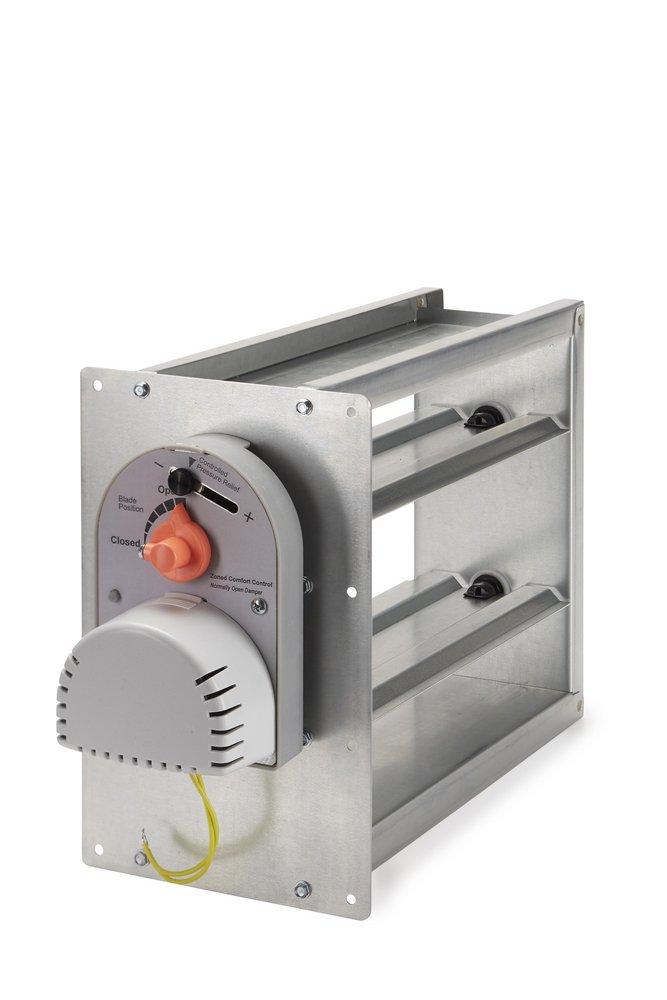

The AprilAire 6837 is a 12 x 20 bottom mount rectangular damper designed for efficient air distribution in HVAC systems. This damper is compatible with the AprilAire Zoned Comfort Control system and is engineered to work in low-pressure applications. It features a two-wire configuration for power closure and spring opening, requiring 24 VAC for operation.

• Applications: Residential
• Electrical Ratings: 24 VAC Synchronous Motor
• Warranty: 5 Years

Product Highlights

This bottom mount damper is suitable for a variety of HVAC applications, ensuring optimal airflow control. The damper includes a spring return mechanism for reliable operation and is designed to fit into a four and a quarter inches slot.

Product Information

Standard Information

• Brand: AprilAire
• MPN: 6837

Technical Specifications

• Size: 12 inches H x 20 inches W
• Type: Bottom Mount Comfort
• Shape: Rectangular
• Finish: Galvanized
• Material: Steel
• Motor Type: Synchronous
• Voltage Rating: 24 VAC
• Electrical Connections: 2-Wire
