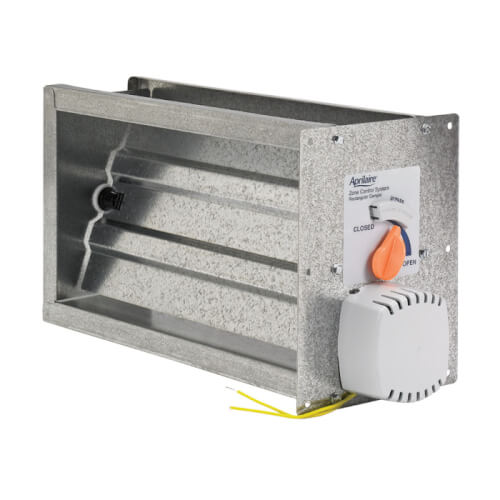

Aprilaire 6727 Zone First Rectangular Spring Return Zone Damper 24 VAC 8 x 20 Replacement MPN

Product Description

The Aprilaire 6727 is a side mount comfort rectangular damper designed for HVAC zoning applications. It operates with 24 VAC power and is sized eight inches high by twenty inches wide. This damper supports residential applications and features a power-closed and spring-open mechanism.

• Compatible with Aprilaire zoned comfort control system
• Installs in a four and a quarter inch slot in ductwork
• Impedance protection for continuous stall capability

Product Highlights

The 6727 damper is ideal for controlling air flow in low pressure systems, ensuring efficient climate control.

Product Information

Standard Information

• Brand: Aprilaire
• Manufacturer: Research Products

Technical Specifications

• Size: 8 in H x 20 in W
• Type: Side Mount Comfort
• Shape: Rectangle
• Material: Galvanized Steel
• Voltage Rating: 24 VAC
• Motor Type: Synchronous
• Electrical Connections: 2-Wire
• Weight: 7.62 lbs
