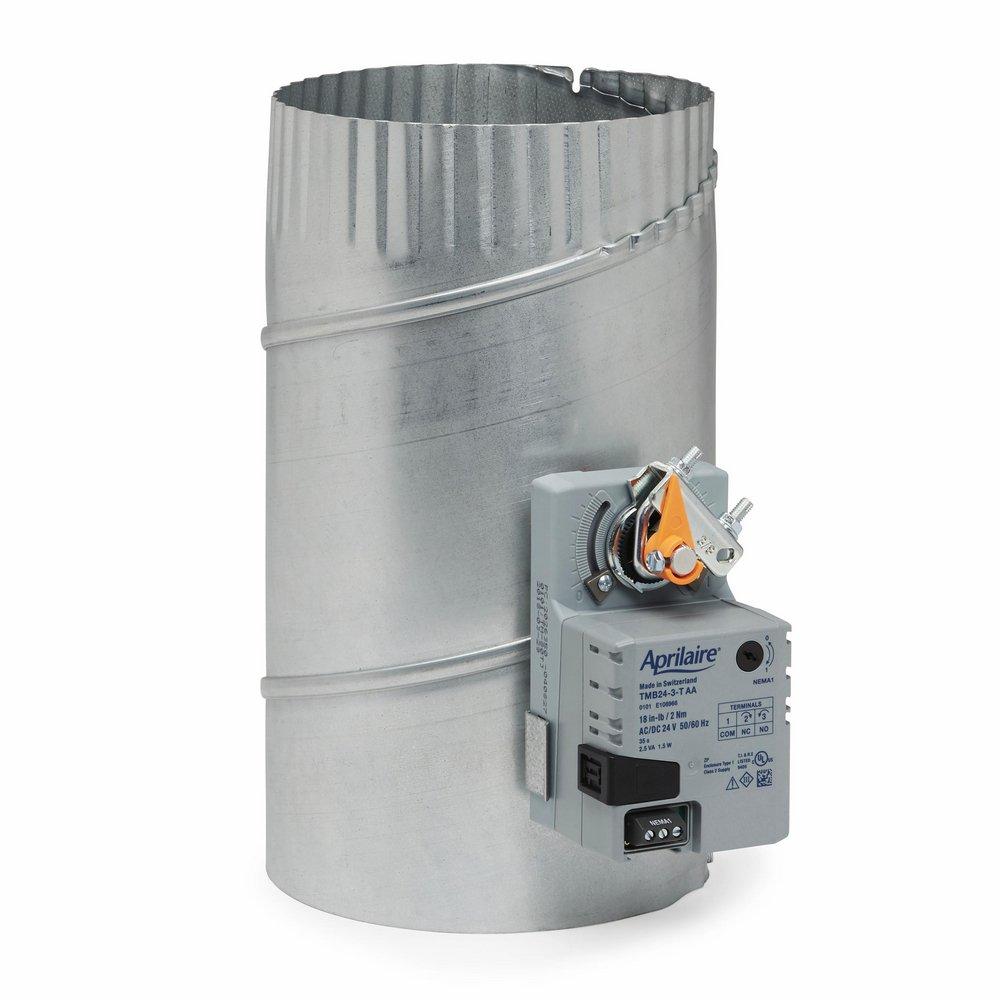

Aprilaire 6614W3 14 inches Round Zone Damper (Power Open/Power Closed) 3 Wire

Product Description

The Aprilaire 6614W3 14" round damper works well with rigid metal or flex duct. It features adjustable blade positioning and an integrated foam seal. It is compatible with the AprilAire Zone Control System and designed to work in low pressure systems. The damper comes with a motor mounted.

• Power Open/Power Closed
• Three Wire Installation
• Adjustable stop in closed position

Product Highlights

The Aprilaire round damper is available in all the sizes you need. It has an adjustable blade positioning and an integrated foam seal.

Product Information

Standard Information

• Brand: APRILAIRE
• Manufacturer Part Number: 6614W3
• Country of Origin: USA

Technical Specifications

• Power: Power Open/Power Closed
• Installation: Three Wire Installation
• Voltage: 24Vac
• Power Consumption: 6W, 19Va
• Motor: 60Hz Synchronous Type Motor
• Protection: Impedance protected for continuous stall
• Adjustability: Adjustable stop (in closed position)
• Product Type: Damper
• Application: Air Quality
• Shape: Round
• Size: 14 in
• Material: Metal, Steel
• Wiring: 3 Wire
• Brand Model Compatibility: 6202, 6203, 6302, 6303, 6403, 6404
• Coating: Galvanized
• Collection: 6600 Series
• Damper Type: Zone Dampers
• Diameter: 14 in
• Gauge (metal): 24 ga
• Height: 14-3/4 in
• Watts: 6 W
• Width: 17-1/4 in
• Duct Size: 14" Round
• Configuration: Damper
• Country Of Origin: USA
• Motor Type: W3 Indicator
