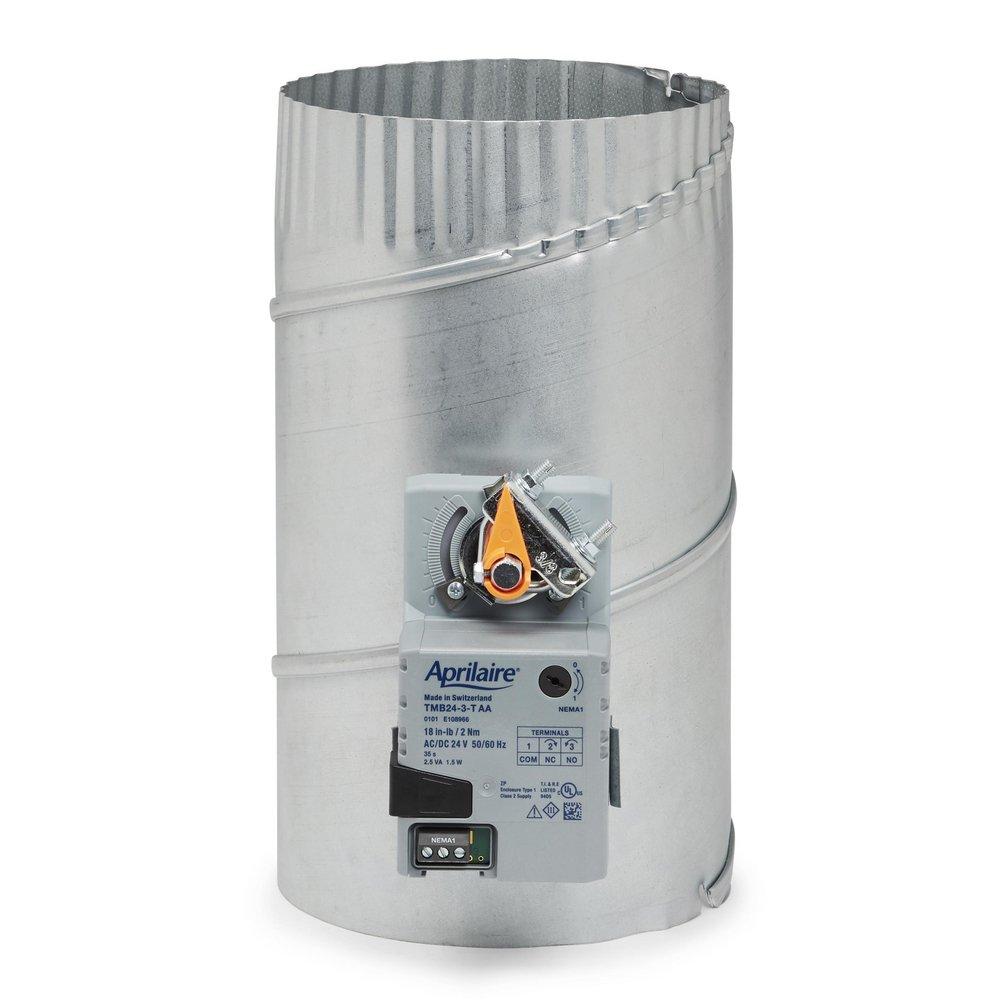

Aprilaire 6612W3 12 inches Round Zone Damper Power Open/Power Closed 3 Wire

Product Description

The Aprilaire 6612W3 round dampers work with rigid metal or flex duct. Adjustable blade positioning and an integrated foam seal provide flexibility for any type of zone job. This power open/power closed damper features a three-wire installation and is impedance protected for continuous stall. It has an adjustable stop in the closed position.

• Power Open/Power Closed
• Three Wire Installation
• Adjustable stop in closed position

Product Highlights

The Aprilaire 6612W3 damper is suitable for air quality applications and is compatible with Aprilaire Zone Control systems. It features a 60Hz synchronous type motor.

Product Information

Standard Information

• Brand: APRILAIRE
• Manufacturer Part Number: 6612W3
• Country of Origin: USA

Technical Specifications

• Power: Power Open/Power Closed
• Wiring: Three Wire Installation
• Voltage: 24Vac, 6W, 19Va
• Motor Protection: Impedance protected for continuous stall
• Adjustable Stop: Adjustable stop (in closed position)
• Product Type: Damper
• Shape: Round
• Size: 12"
• Material: Metal, Steel
• Depth: 15.5 in.
• Height: 12-3/4 in
• Width: 15.5 in.
• Configuration: Damper
• Air Movement: Mounting Type Screws
• Prop 65: No
• Electrical: Amps 0.25
• Cycle/Hertz: 60 Hz
• Phase: Single
• Brand: AprilAire
• Network Zoning: Yes
• Damper Type: Power Open/Power Close
• Composition: Metal Damper with actuator
• Emergency Heat Switch: No
• Heat Pump Compatible: Yes
• Diameter: 12 in
• Gauge (metal): 24 ga
• Volts: 24V
• Watts: 6 W
• Collection: 6600 Series
• Zone Dampers: Zone Dampers
