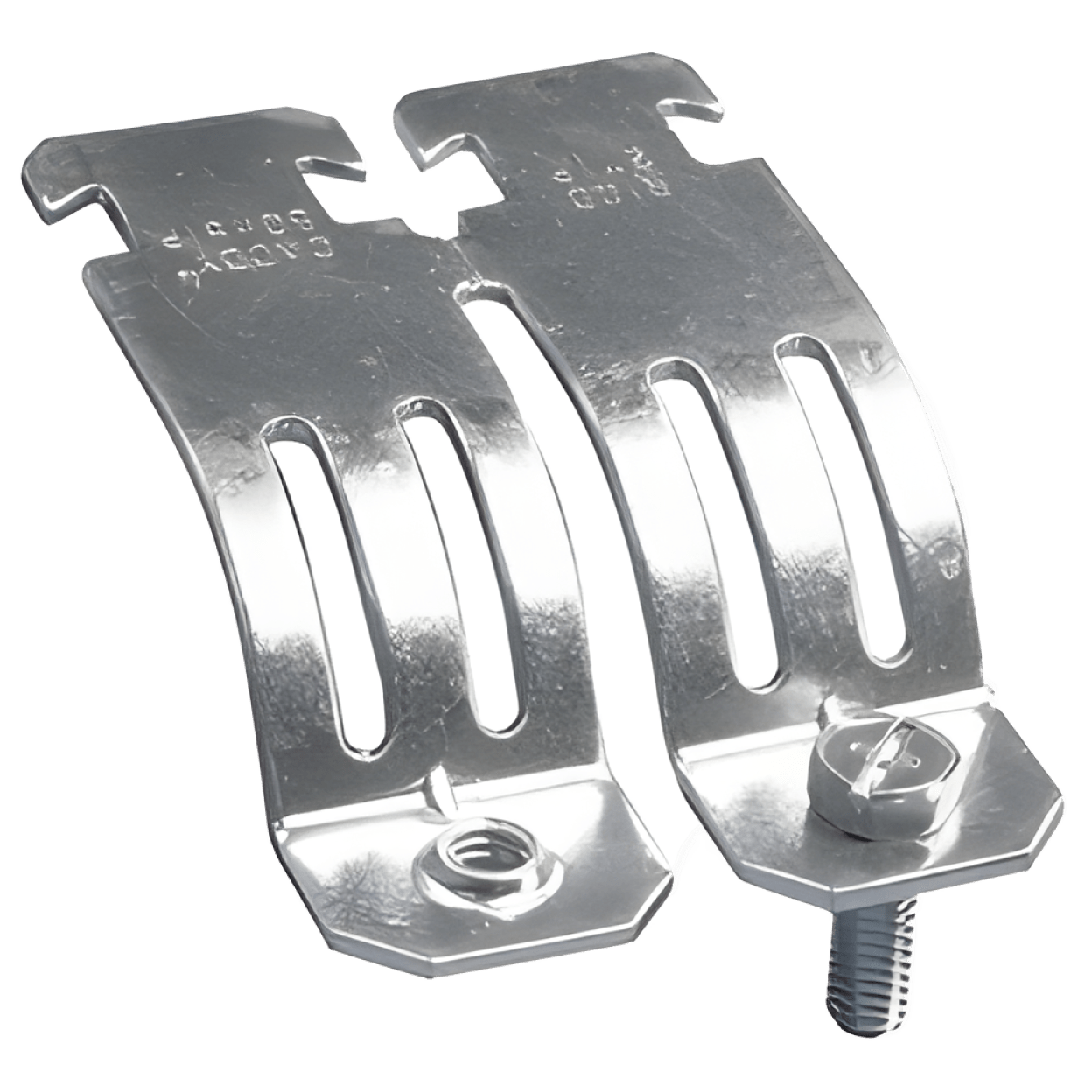

Approved Vendor RIGD0250EG Electrogalvanized Steel Rigid Single Piece Heavy Duty Strut Clamp, 2-1/2 inch x 12 ga, 800 lb

Product Description

The Approved Vendor RIGD0250EG is a rigid strut clamp made from steel with an electrogalvanized finish for enhanced corrosion resistance. This heavy-duty component measures two and a half inches nominal size and has a thickness of twelve gauge. It supports a maximum load of eight hundred pounds, making it suitable for various applications including securing pipes and other components in electrical or plumbing installations.

• Material: Steel for strength and durability
• Max Load Capacity: 800 lbs
• UL Listed and compliant with ANSI and ASTM standards

Product Highlights

This clamp features a one-piece design and comes with a captured screw for easy installation. It is compatible with pipe sizes ranging from one-half inch to four inches.

Product Information

Standard Information

• Brand: Approved Vendor
• MPN: RIGD0250EG

Technical Specifications

• Material: Steel
• Thickness: 12 ga
• Max Load: 800 lbs
• Pipe Size: 1/2 inch to 4 inch
• Standards: UL Listed, ANSI, ASTM
• Type: Strut Clamps
