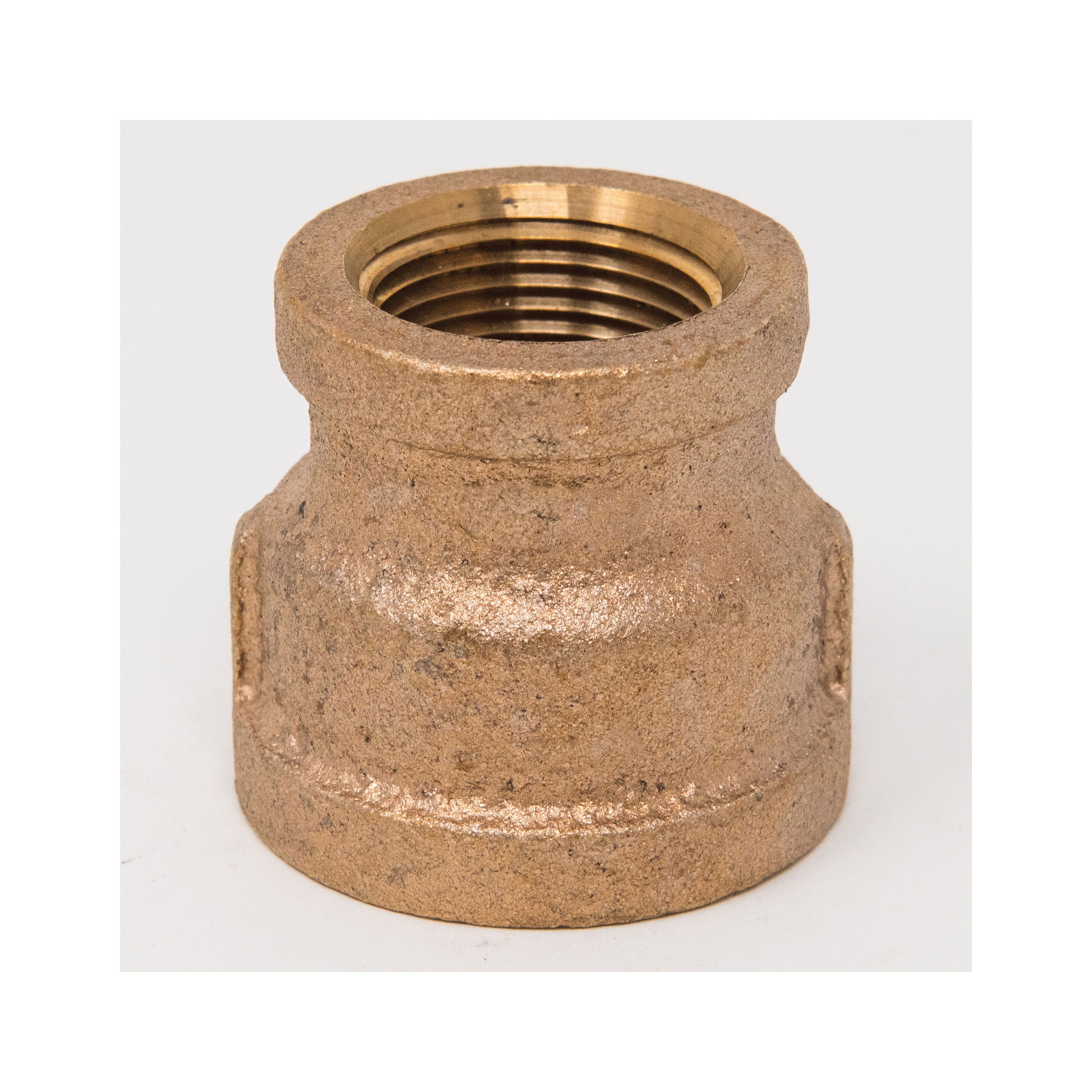

Approved Vendor P580988_1N Pipe Reducer Coupling 1-1/2 x 1-1/4 in FNPT

Product Description

The Approved Vendor Pipe Reducer Coupling, MPN P580988_1N, is designed to connect pipes with different diameters. It measures one and one-half inch by one and one-quarter inch nominal size and features a female National Pipe Tapered (FNPT) end. This coupling meets the schedule forty standard and operates effectively at a pressure rating of one hundred twenty-five to two hundred psi.

• Nominal Size: 1-1/2 x 1-1/4 inches
• Temperature Rating: -20 to 400 degrees Fahrenheit
• Material: Brass

Product Highlights

This brass coupling is ideal for various plumbing applications, including connecting tubes in residential and commercial settings.

Product Information

Standard Information

• Brand: Approved Vendor
• Part Number: 594

Technical Specifications

• Domestic/Import: Import
• End Style: FNPT
• Finish: Rough
• Fitting/Connector Type: Coupling
• Material: Brass
• Nominal Size: 1-1/2 x 1-1/4 in
• Pressure Class: 125 lb
• Pressure Rating: 125 To 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 400 deg F
