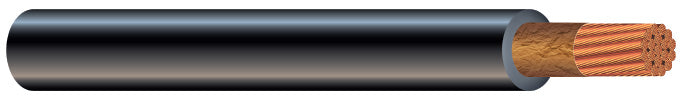

Approved Vendor B09796 Welding Cable 600 VAC (1) 4/0 AWG Replacement MPN

Product Description

The Approved Vendor B09796 is a Type M welding cable suitable for a variety of welding applications. This cable features a single copper conductor with a size of 4/0 AWG and is rated for 600 VAC. The coil packaging ensures easy handling and storage, and the cable measures one hundred feet in length. The EPDM jacket provides protection and durability, even in challenging environments.

• Type M welding cable
• Rated for 600 VAC
• Single copper conductor, 4/0 AWG

Product Highlights

This cable is ideal for industrial and commercial welding tasks where high amperage is needed. It can operate effectively in temperatures from -40 to 90 degrees Celsius.

Product Information

Standard Information

• Brand: Approved Vendor
• Part Number: WCUWELD4/0

Technical Specifications

• Amperage Rating: 405 A
• Jacket Color: Orange
• Jacket Material: EPDM
• Outside Diameter: 0.8 in
• Temperature Rating: -40 to 90 deg C
• Voltage Rating: 600 VAC
• Number of Conductors: 1
• Conductor Size: 4/0 AWG
• Conductor Type: Copper
• Length: 100 ft
