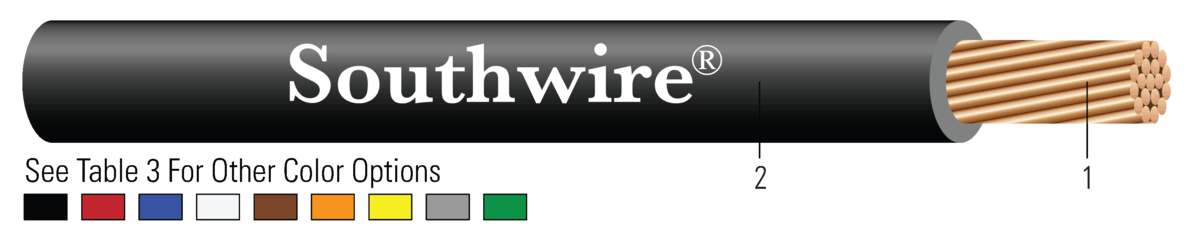

Approved 1-0XHHWGRN2500 Copper SIMpull XHHW-2/RW90 Conductor

Product Description

The APPROVED 1-0XHHWGRN2500 is a copper SIMpull XHHW-2/RW90 conductor. This conductor is ideal for use in conduit, cable trays, and raceways for various electrical applications as outlined by the National Electrical Code. It can operate effectively in both wet and dry locations, with a maximum temperature rating of ninety degrees Celsius. The XHHW-2 rating allows handling voltages up to six hundred volts, while the RW90 rating permits open wiring in both dry and wet environments per Canadian standards. This conductor is created for easy installation without the need for pulling lubricants.

• Sunlight resistant for durability.
• Rated for cold bending at minus forty degrees Celsius.
• Resistant to gasoline and oil, ensuring longevity.

Product Highlights

This conductor is a reliable choice for electrical technicians needing a versatile, high-performance wiring option.

Product Information

Standard Information

• Conductor Type: Copper
• Construction: SIMpull XHHW-2/RW90

Technical Specifications

• Conductor Size: 1/0 AWG
• Strands: 19
• Number of Conductors: 1
• Diameter Over Conductor: 0.361 inches
• Insulation Thickness: 55 mils
• Outer Diameter: 0.480 inches
• Copper Weight: 326 lbs/1000'
• Approximate Weight: 363 lbs/1000'
