Appozgcomm GBL-300 1-In Ins Grd Bushing

Product Description

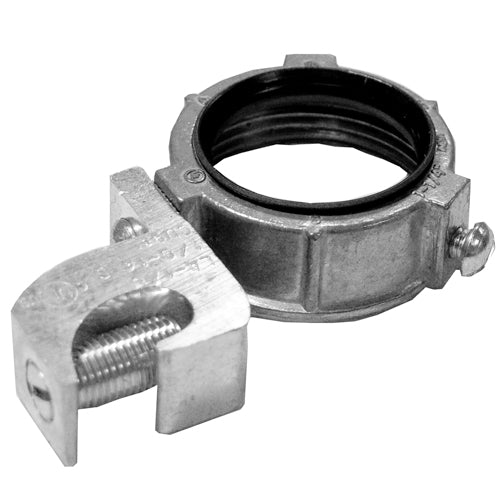

The APPOZGCOMM GBL-300 is a conduit grounding bushing with a threaded, set screw type. Designed for use on rigid conduit/IMC, it features an insulated throat and a tin-plated aluminum lug. Accommodates wire sizes 14 to 4 AWG and is constructed with a die-cast zinc body and zinc-plated steel screws.

• Conduit Grounding Bushing
• Threaded, Set Screw Type
• 1 Inch Trade Size
• UL 467, CSA C22.2 Approval

Product Highlights

This grounding bushing ensures secure termination of rigid and IMC conduit to an enclosure, providing a smooth pulling surface.

Product Information

Standard Information

• Brand: APPOZGCOMM
• Manufacturer Part Number: GBL-300

Technical Specifications

• Type: Threaded, Set Screw
• Trade Size: 1 Inch
• Wire Size: 14 to 4 AWG
• Lug Type: Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Diameter: 1.53 Inch
• Height: 0.6 Inch
• Material: Die Cast Zinc Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw
• Approval: UL 467, CSA C22.2
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Temperature Rating: 150 Deg C
• Application: Used with locknut to terminate rigid and IMC Conduit to an Enclosure, Provides a Smooth Pulling Surface
• Brand: APPOZGCOMM
• Manufacturer: APPOZGCOMM
• Mounting Type: Screw
• Special Features: 1.53 IN Dia X 0.6 IN Thick, For Rigid Conduit And IMC, Wire Range 14 to 4 AWG
• Standard: UL
