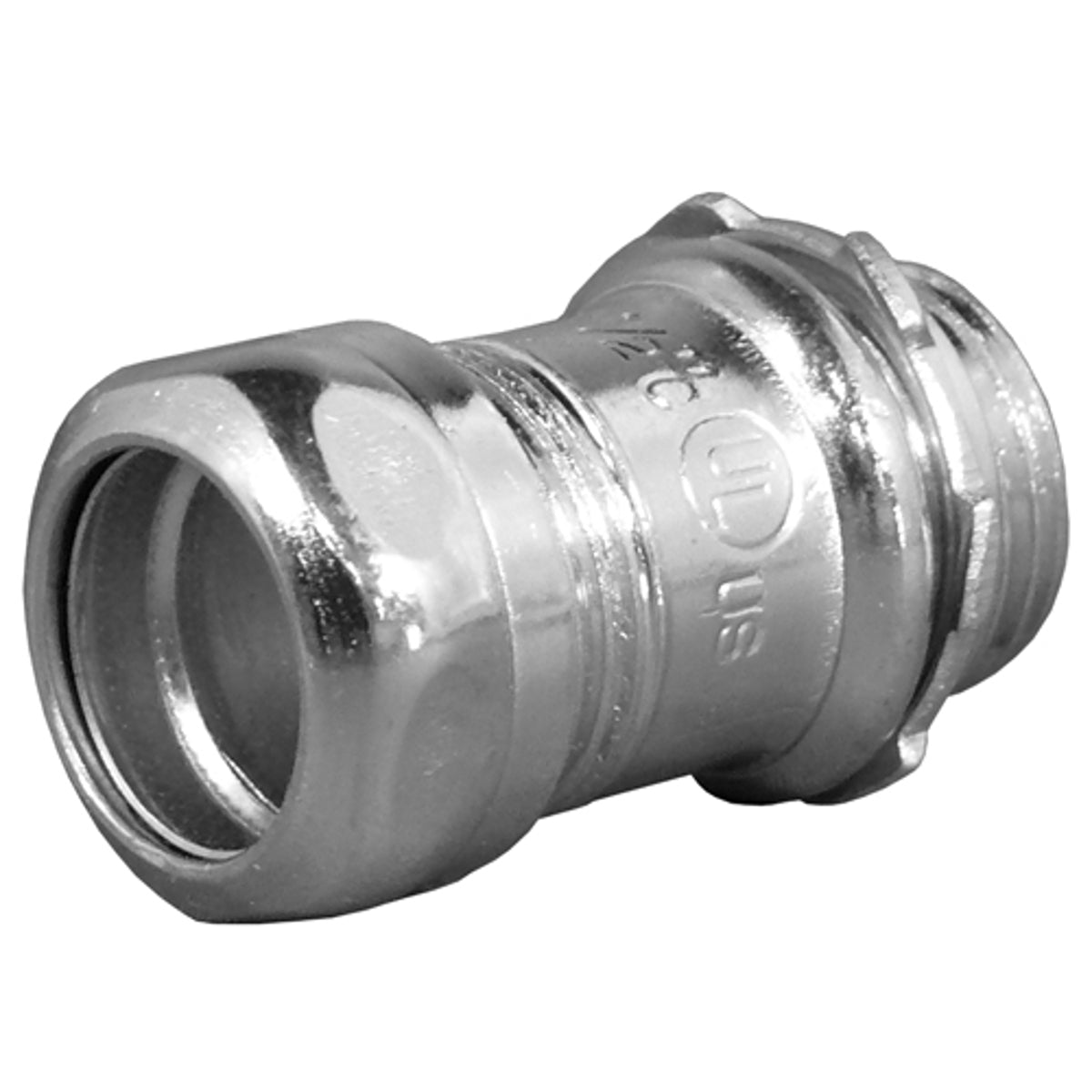

APPOZGCOMM 7125ST EMT Conduit Straight Compression Connector 1.25IN

Product Description

The APPOZGCOMM 7125ST is an EMT conduit straight compression connector designed for grounding and securing EMT raceways to boxes and enclosures. This connector has a diameter of one and thirteen-sixteenths inches and a length of two inches. The thread length measures nine-sixteenths of an inch and is made from steel with a zinc electroplated finish.

• Application: Grounds and secures EMT raceways
• Material: Steel with zinc electroplated finish
• Temperature rating: Ninety degrees Celsius

Product Highlights

Utilizing this connector ensures compliance with UL Standard 514B and CSA C22.2, offering reliability in electrical applications.

Product Information

Standard Information

• Brand: APPOZGCOMM
• Application: To ground and secure EMT raceways

Technical Specifications

• Catalog Number: 7125ST
• Connection: Male NPS Thread
• Finish: Zinc Electro Plated
• Insulation: Insulated Throat
• Material: Steel
• NEMA Rating: 1
• Country of Origin: India
• Sub Brand: ETP
• Temperature Rating: 90 degrees Celsius
