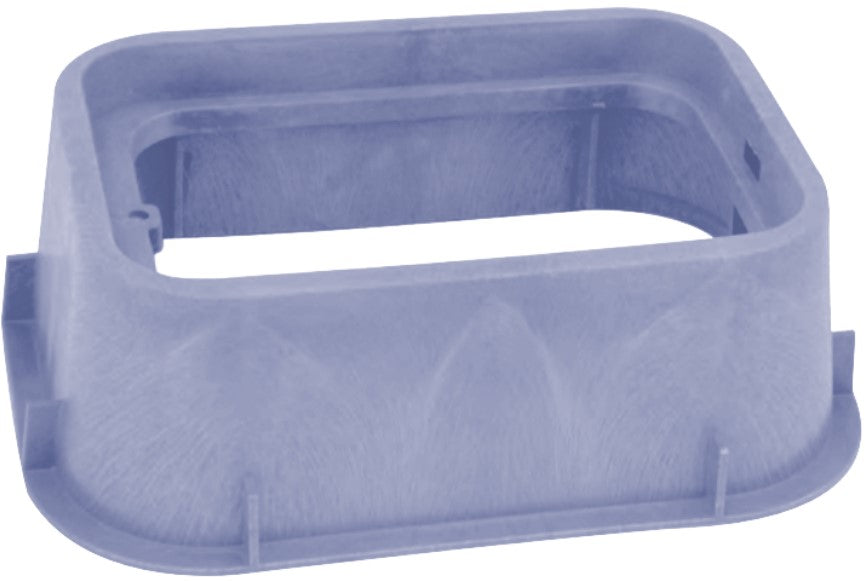

Applied Engineering Products 1015-XL V-box Extension

Product Description

The APPLIED ENGINEERING PRODUCTS 1015-XL is a V-Box extension designed for use in filter or air handling applications where additional depth or volume is needed within a duct or air distribution system. Measuring 14 inches by 19 inches by 6 inches overall with an interior filter opening of 11 inches by 17 inches, this lavender-coded extension provides a standardized fit for V-Box filter assemblies. At 4 pounds, it is lightweight enough for single-technician installation. HVAC technicians and air quality service professionals are the typical installers of this component.

This extension is suited for residential and light commercial air handling systems where V-Box filter configurations are used. The lavender color coding is commonly associated with specific filter grades or product lines within V-Box filtration systems, helping installers quickly identify the correct extension for a given application. The 14 x 19 x 6 inch outer dimensions and 11 x 17 inch inner opening are key to proper filter seating and airflow management within the assembly.

Key Features

• Outer dimensions: 14 inches x 19 inches x 6 inches for precise duct integration
• Interior filter opening: 11 inches x 17 inches for compatible filter media seating
• Lavender color coding for quick product identification in the field
• Lightweight at 4 pounds for easy single-tech handling and installation
• Order increment of 1 for flexible purchasing quantities

Compatibility

Designed as an OEM-style replacement or expansion component for V-Box filter assemblies in residential and light commercial HVAC air distribution systems requiring a 14 x 19 x 6 inch extension with an 11 x 17 inch filter opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician. Before servicing any air handling unit or duct component, shut down the air handling system and confirm the unit is de-energized at the disconnect or breaker. Verify that the extension dimensions match the existing V-Box frame and duct opening before securing. Follow local mechanical codes and manufacturer guidelines for proper sealing and fastening of duct components.

Technical Specifications

• Outer Dimensions: 14 inches x 19 inches x 6 inches
• Filter Opening: 11 inches x 17 inches
• Color Code: Lavender
• Weight: 4 pounds
• Order Increment: 1

Standard Information

• Brand: APPLIED ENGINEERING PRODUCTS
• Manufacturer Part Number: 1015-XL
