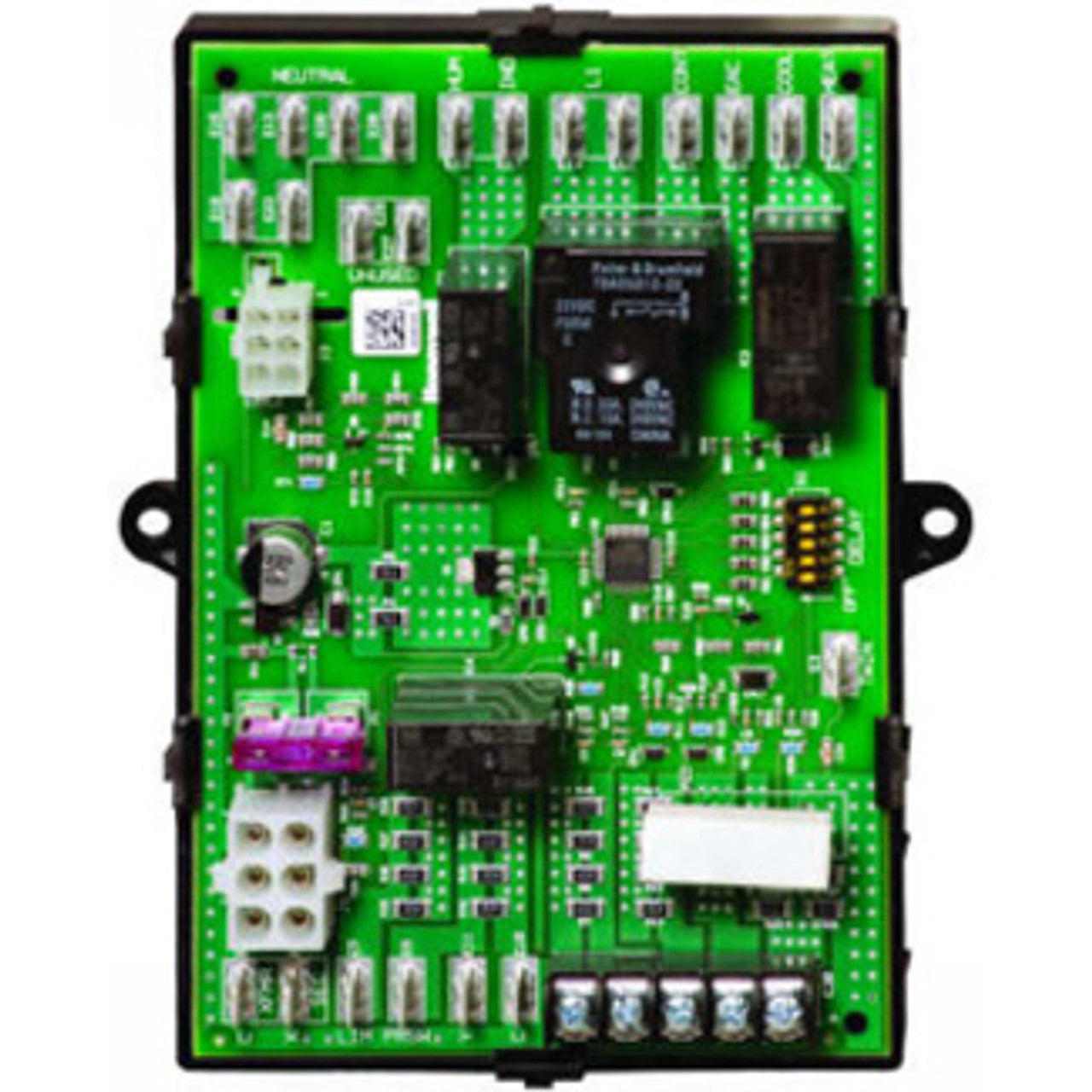

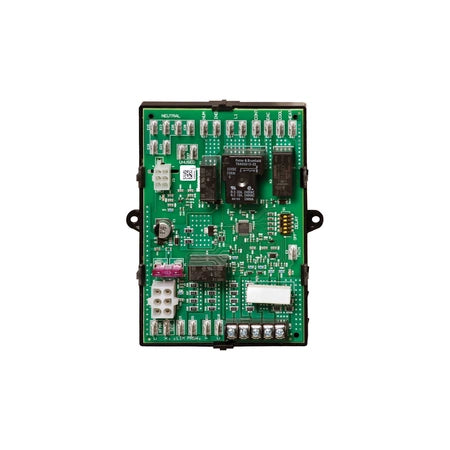

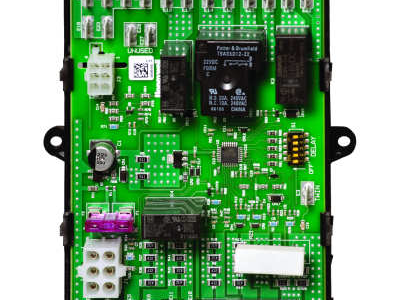

APPLIANCE PARTS ST9120U Appliance Parts Universal Electronic Fan Timer

Product Description

The Appliance Parts ST9120U is a universal electronic fan timer made for gas warm air appliances. This timer coordinates the operation of the combustion blower and circulating fan.

• Integrates control of both combustion blower and circulating fan.
• Provides adjustable heat and cool fan delay settings.
• Features LED diagnostics for easier troubleshooting.

Product Highlights

This unit serves as a universal replacement for Honeywell models ST9120, ST9101, ST9141, and ST9160.

Product Information

Standard Information

• UPC: 085267719582
• Weight: 0.97 pounds

Technical Specifications

• Input Voltage: 18-30 V
• Frequency: 50 Hz; 60 Hz
• Heat Fan On Delay: Adjustable 30 seconds or 60 seconds
• Heat Fan Off Delay: Adjustable 60 seconds, 120 seconds, 150 seconds, or 180 seconds
• Cool Fan On Delay: Adjustable 4 seconds or 30 seconds
• Cool Fan Off Delay: Adjustable 30 seconds or 60 seconds
• Ambient Temperature Range: -40 to 175 degrees F
• Weight (Approximate): 1.30 pounds
• Approvals, Underwriters Laboratories Inc.: Listed: Report MP466
• Approvals, CSA: Certified: File No. LR95329-17
