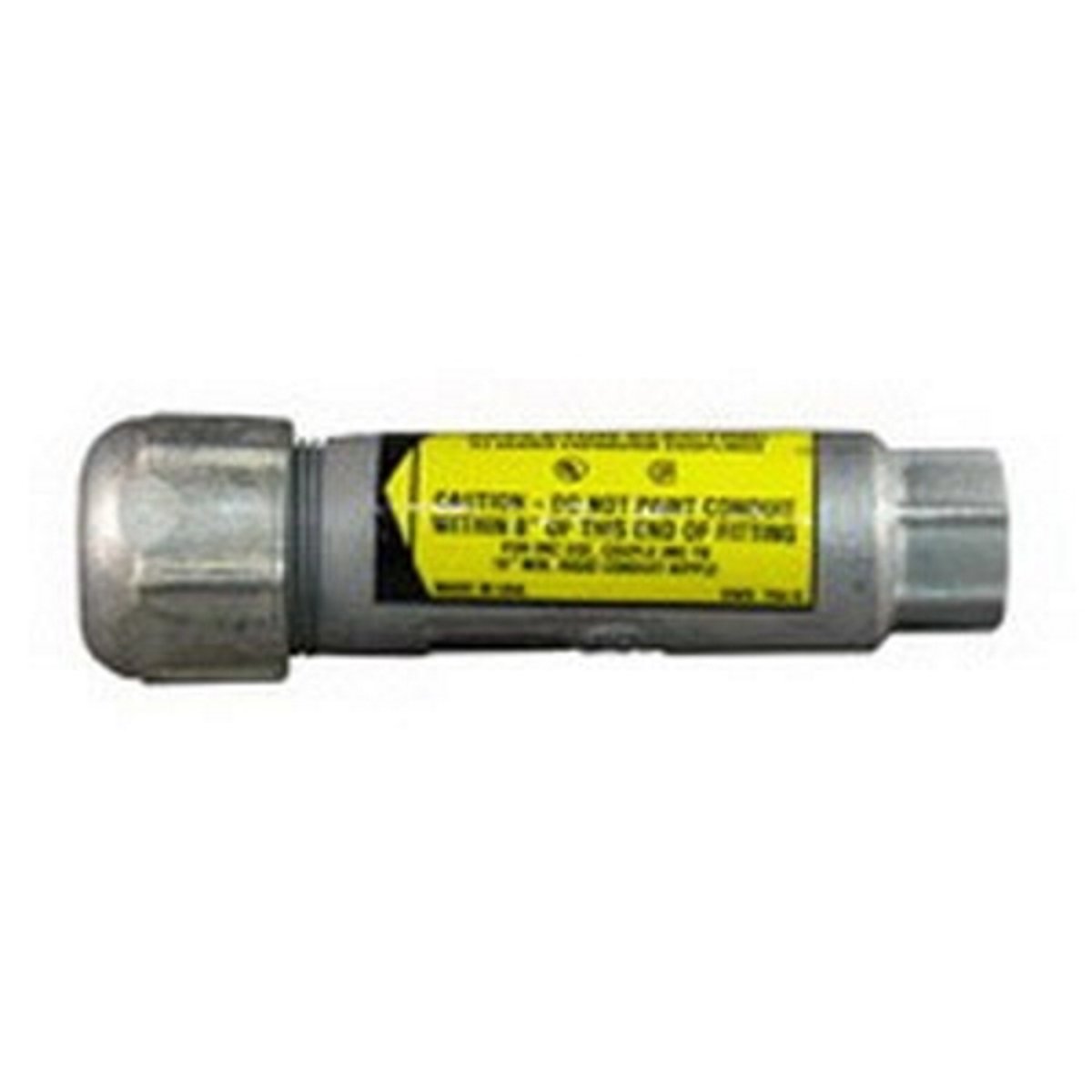

Appleton XJ300-4 Expansion Coupling 3 in 4 in Movement

Product Description

The APPLETON XJ300-4 is a 3 IN expansion coupling designed for rigid metal conduit. It provides movement for long conduit runs in buildings and between structural expansion joints. Constructed from malleable iron with a hot-dipped galvanized finish, this coupling ensures a continuous electrical conductor within the conduit system.

• Equivalent to weather-tight joints for use with heavywall conduit
• Metallic packing ring ensures a continuous electrical conductor
• Provides 4 IN of conduit movement

Product Highlights

This Appleton expansion coupling is UL 467 listed and suitable for indoor and outdoor locations. Copper bonding jumpers are available for additional bonding.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: XJ300-4
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: XJ300-4
• Manufacturer: Appleton Electric
• Brand: Appleton
• Application: For Rigid Metal Conduit
• Flexibility: Rigid
• Material: Malleable Iron
• Special Features: Couplings have the equivalent of weather-tight joints for use with heavywall conduit; Metallic packing ring to insure the entire conduit system remains a continuous electrical conductor; Copper bonding jumpers are available to provide additional effective metallic bond to each conduit run; XJ expansion couplings have been Listed by UL for use with bonding jumpers in indoor and outdoor locations; XJ expansion couplings provide for movement that takes place on long runs of conduit installed in buildings of great length and between divisions of buildings which are sectioned apart by structural expansion joints
• Standard: UL 467, UL File Number E14814
• Item Type: 4 IN Expansion Coupling
• Length: 8.13 Inch
• Outside Diameter: 5.38 IN
• Trade Size: 3 IN
• Maximum Movement: 4 Inch
• Constructional Feature: Weathertight
• Approval: UL 467
• Used On: Rigid Metal Conduit
• Finish: Hot Dipped Galvanized
• Type: Type XJ
• ARRA Compliant: Y
• Buy American Compliant: N
• Suitable For Use With: Rigid Metal Conduit
• Diameter: 3 in
