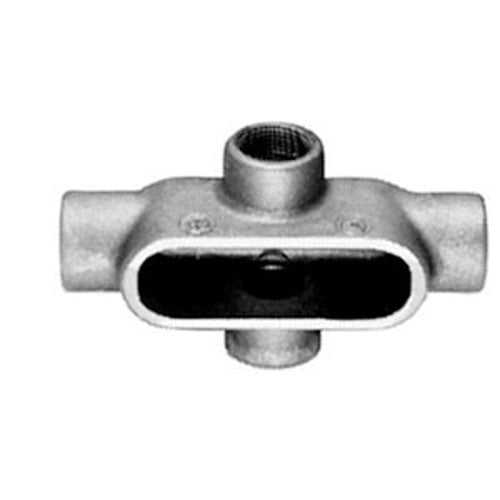

Appleton X57 Type X Conduit Outlet Body, 1-1/2 in Hub, Form 7, 28 cu-in

Product Description

The Appleton X57 Type X Conduit Outlet Body is designed for use in rigid steel, aluminum, and IMC conduit systems. This outlet body features a one and a half inch hub and a cubic capacity of twenty-eight cubic inches. Made from Grayloy iron, it is durable and suitable for wet locations.

• Integral bushing protects conductor insulation.
• Completely interchanges with Crouse-Hinds Form 7 units.
• Flat back design for easier wire pulling and splicing.

Product Highlights

This conduit outlet body incorporates a unique Wedge-Lok cover design for easy access and maintenance while being secured with clips for reliability.

Product Information

Standard Information

• Product Type: Conduit Outlet Body
• Brand: Appleton

Technical Specifications

• Application: For rigid steel/aluminum and IMC conduit
• Capacity: 28 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 8.19 in length x 4.63 in width x 2.56 in height
• Enclosure: NEMA FB-1
• Finish: Triple coated
• Hub Size: 1-1/2 in
• Material: Grayloy iron
• Manufacturing Standards/Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Mounting Type: Surface
• Number of Hubs: 4
• Type: Type X
