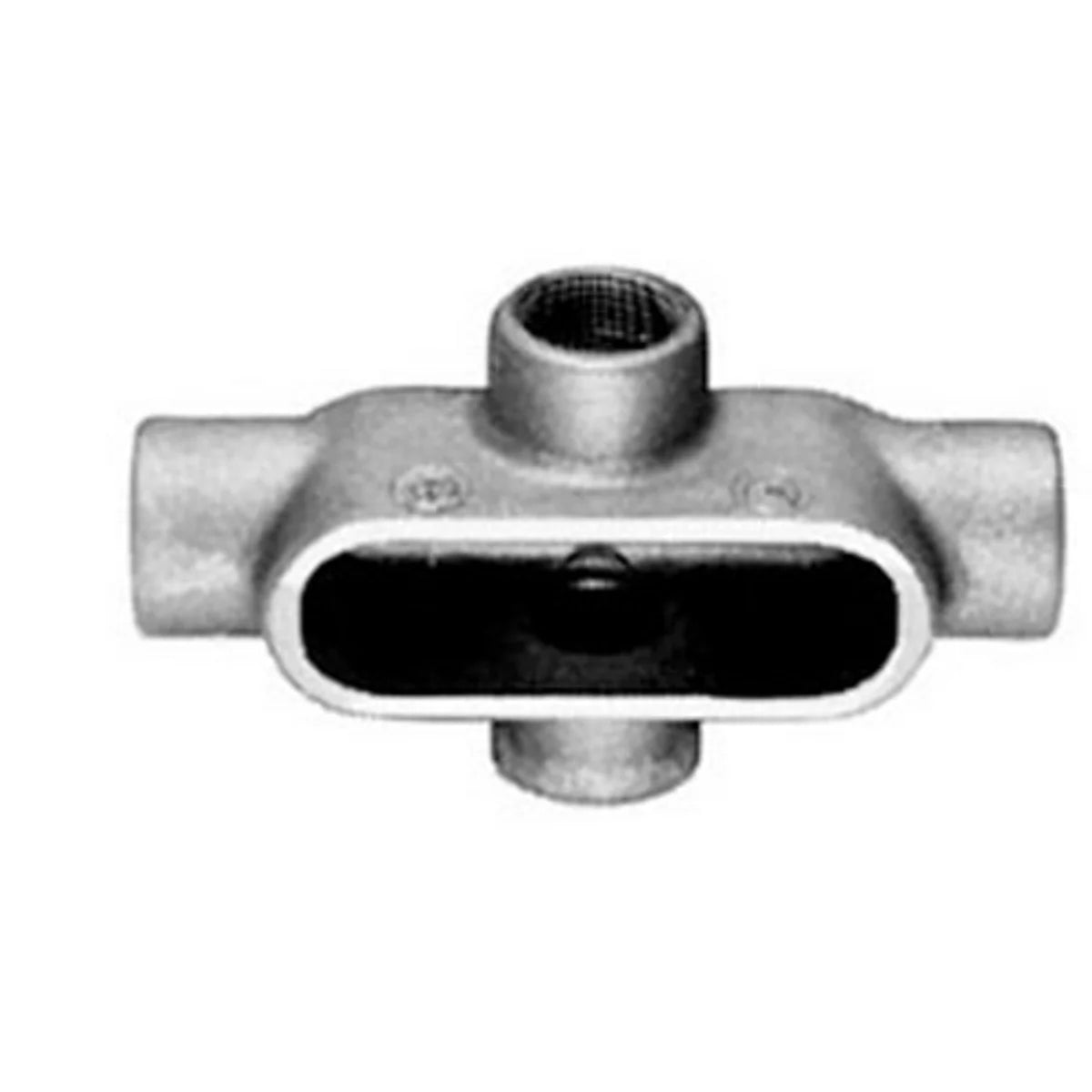

Appleton X27 Type X Conduit Outlet Body 3/4 in Hub Form 7

Product Description

The Appleton X27 is a Type X conduit outlet body suitable for various electrical applications. It features a hub size of three-fourths inches with a Form 7 design. This outlet body is constructed from Grayloy-Iron and has been designed to last in demanding environments.

• Hub Size: Three-fourths inches
• Material: Grayloy-Iron
• Application: For use with rigid steel, rigid aluminum conduit, and IMC

Product Highlights

The Appleton X27 allows for tight, rigid joints through accurately tapped, tapered threads. It serves multiple functions including bending conduit systems, providing openings for splicing, and offering access for maintenance.

Product Information

Standard Information

• Brand: Appleton
• Catalog Number: X27

Technical Specifications

• Form: 7
• Hub Size: 3/4 inches
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Height: 2 inches
• Width: 3.5 inches
• Length: 6.25 inches
• Capacity: 10 cu-in
• Connection: Tapered Female Threaded
• Application: Suitable for Rigid Steel and Aluminum Conduit
• Country of Origin: Mexico
• Compliance Standards: UL 514A, UL 514B, NEMA FB-1
