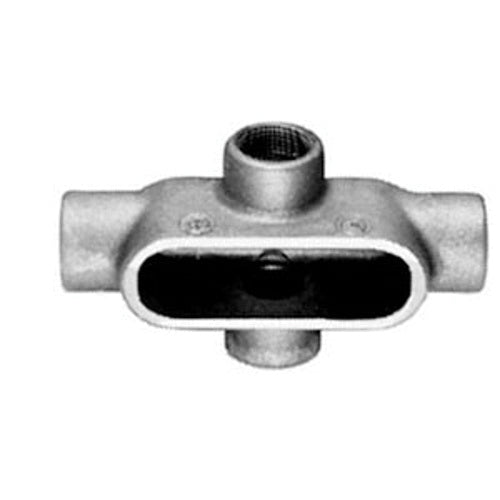

Appleton X17 Type X Conduit Outlet Body, 1/2 in Hub, Form 7, 6 cu-in

Product Description

The Appleton X17 Type X Conduit Outlet Body is designed for effective electrical conduit connections. This product features a one-half inch hub and a form seven structure, ensuring reliable performance in various applications.

• Constructed from durable Grayloy iron.
• Approved for use in wet locations.
• Interchangeable with Crouse-Hinds Form 7 bodies.

Product Highlights

The outlet body allows easy assembly, secure connections, and protects conductor insulation. It fits snugly against flat surfaces, optimizing installation.

Product Information

Standard Information

• Brand: Appleton
• MPN: X17

Technical Specifications

• Application: For Rigid Steel/Aluminum and IMC Conduit
• Capacity: 6 cubic inches
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 5.63 inches L x 3.31 inches W x 1.75 inches H
• Enclosure: NEMA FB-1
• Finish: Triple Coated
• Form: Form 7
• Hub Size: 1/2 inch
• Material: Grayloy Iron
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Mounting Type: Surface
• Number of Hubs: 4
• Package Height: 0.92 inches
• Package Length: 8.1 inches
• Package Weight: 1.46 lbs
• Package Width: 5.1 inches
• Type: Type X
