Appleton X125-M UNILET FORM 35 1-1/4 IN

Product Description

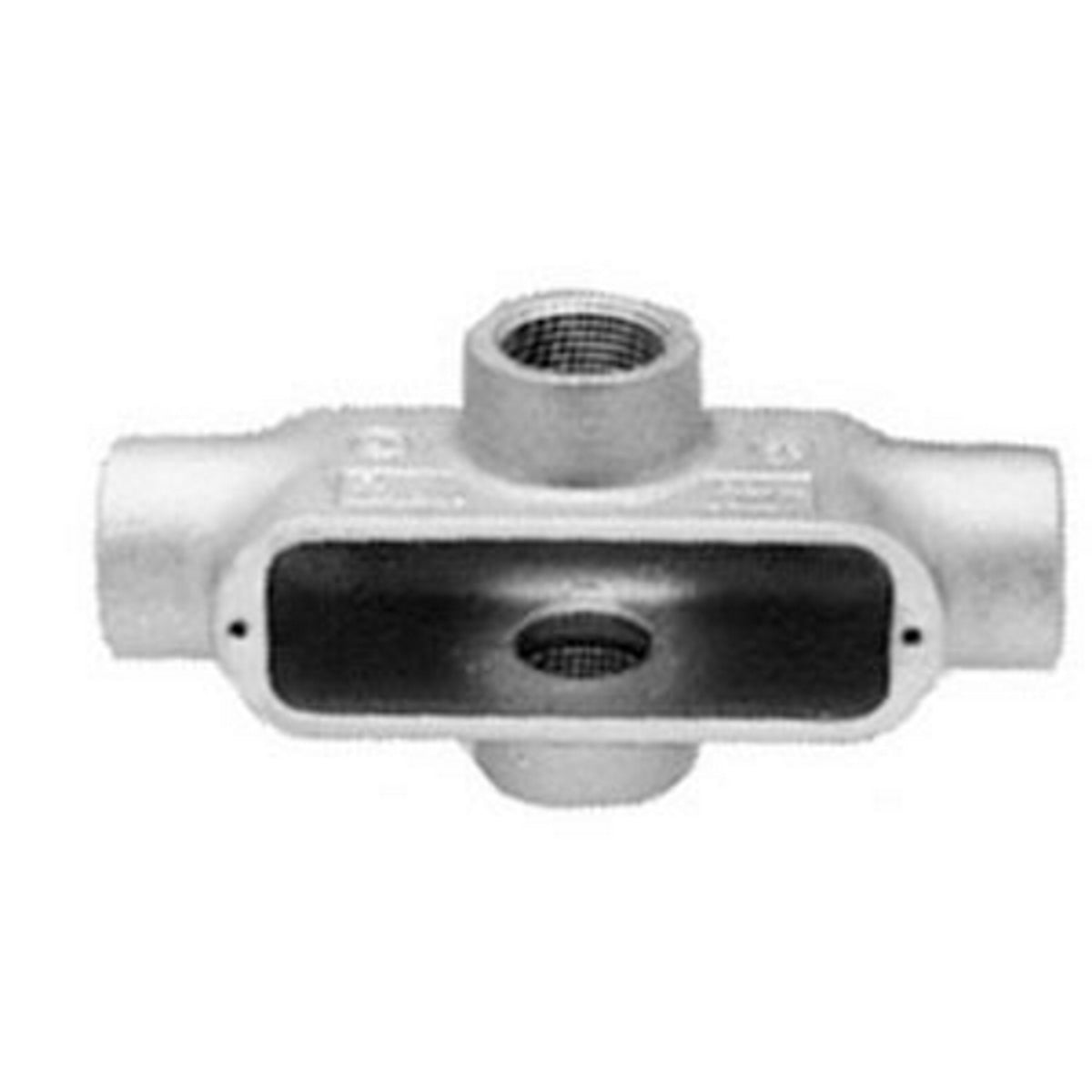

The Appleton X125-M is a Type X Conduit Outlet Body. It features a hub size of 1-1/4 inches and is made from malleable iron. The product has a width of four and a half inches and a height of two point five six inches. It is triple-coated with a finish of zinc electroplate, chromate, and epoxy powder coat.

• Hub Size: 1-1/4 inches
• Material: Malleable Iron
• Finish: Triple-Coat for corrosion resistance

Product Highlights

This conduit body allows for effective wiring management and provides flexibility in conduit direction. It is designed for use with rigid steel, rigid aluminum conduit, and IMC.

Product Information

Standard Information

• Brand: Appleton
• MPN: X125-M

Technical Specifications

• Catalog Number: X125-M
• Material: Malleable Iron
• Height: 2.56 inches
• Width: 4.5 inches
• Hub Size: 1-1/4 inches
• Connection: Tapered Female Threaded
• Applications: For use with rigid steel, rigid aluminum conduit and IMC
• Standard Compliance: UL 514A, UL 514B, CSA C22.2
