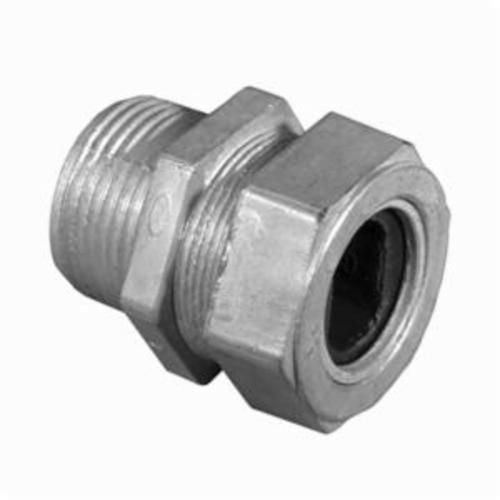

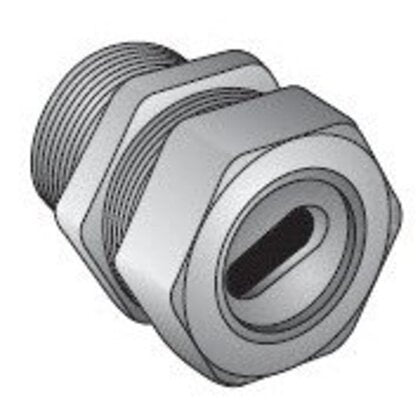

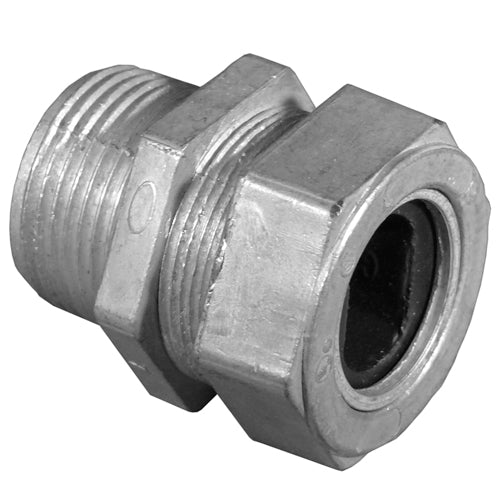

Appleton WC-1502 NEER Service Entrance Connector, 1-1/2 in Knockout

Product Description

The APPLETON WC-1502 NEER Service Entrance Connector is designed for terminating and sealing service entrance cables entering an enclosure or conduit hub. It is suitable for use with oval SE/U cables. The connector features a neoprene grommet and a steel/zinc plated compression washer.

• Steel/Zinc plated compression washer
• Neoprene grommet
• Sealing and Terminating Oval SE/U Cable

Product Highlights

The WC-1502 is a die-cast zinc service entrance connector with a 1-1/2" trade size.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: WC-1502
• Country of Origin: IN

Technical Specifications

• Knockout Size: 1-1/2 in
• Material: Die Cast Zinc
• Catalog ID: NEEWC-1502
• Series: WC
• Suitable For Use With: Oval SE/U Cable
• Trade Size: 1-1/2 in
• Standard & Approvals: UL E37336, CSA LR14489, RoHS Complaint
• Application: For terminating and sealing service entrance cable entering an enclosure or conduit hub
• Special Features: Neoprene grommet Steel/Zinc plated compression washer
• Standard: UL Listed: E37336, CSA Certified: LR14489
• Sub_Brand: Appleton
• Type: Service Entrance
• Diameter: 1 1/2 in
• Diameter Range: 0.740 - 1.230 in
• Brand: Appleton Group
• Category: Electrical
• Country of Origin: IN
