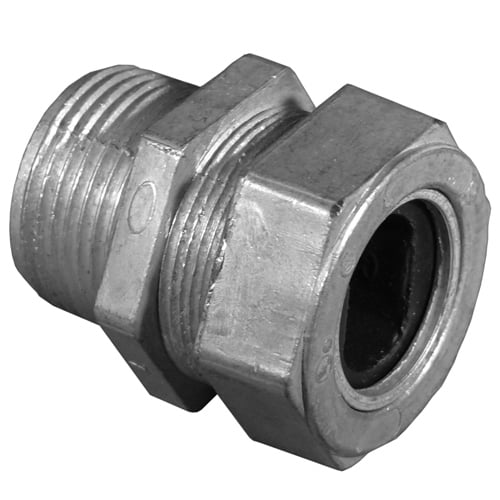

Appleton WC-1252 NEER Service Entrance Connector 1-1/4 in Knockout

Product Description

The APPLETON WC-1252 NEER Service Entrance Connector is designed for terminating and sealing service entrance cables entering an enclosure or conduit hub. It is made from die-cast zinc and suitable for use with oval SE/U cables. This connector ensures a secure and sealed connection for service entrance applications.

• Steel/Zinc plated compression washer
• Neoprene grommet
• Sealing and Terminating Oval SE/U Cable

Product Highlights

The APPLETON WC-1252 provides a reliable service entrance connection with its durable construction and secure sealing capabilities.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: WC-1252
• Country of Origin: IN

Technical Specifications

• Knockout Size: 1-1/4 in
• Material: Die Cast Zinc
• Trade Size: 1-1/4 in
• Standard & Approvals: UL E37336, CSA LR14489, RoHS Complaint
• Suitable For Use With: Oval SE/U Cable
• Grommet: 0.51 x 0.93 in Minimum, 0.57 x 0.85 in Maximum
• Thread: 0.61 in L
• Series: WC
• Applications: For Securing and Sealing Cords or Cables Entering Enclosures or Raceways
• Size: 1-1/4 in
• Standard: CSA,E2186,UL
• Brand: Appleton
• Sub Brand: NEER
• Specifications: 0.51 x 0.93 in Min, 0.57 x 0.85 in Max Grommet, 0.61 in L Thread
• BABA Compliant: No
