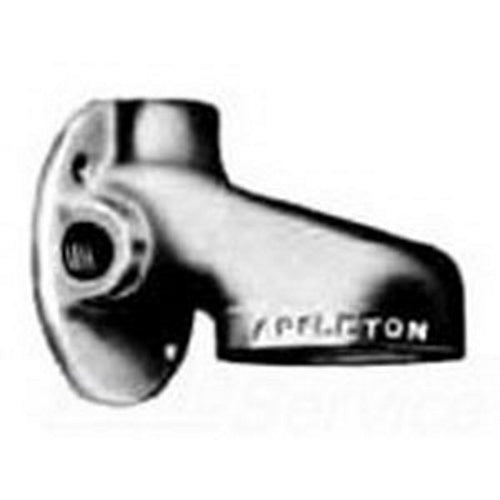

Appleton VGAT-75 mounting hood 3/4 inches fixture mounting unilet

Product Description

The Appleton VGAT-75 3/4" Fixture Mounting Unilet is designed for use with threaded metal conduit and has a 3/4" hub. It is suitable for V-51 Incandescent Luminaires and 30-degree angle reflectors.

• For V-51 Incandescent Luminaires

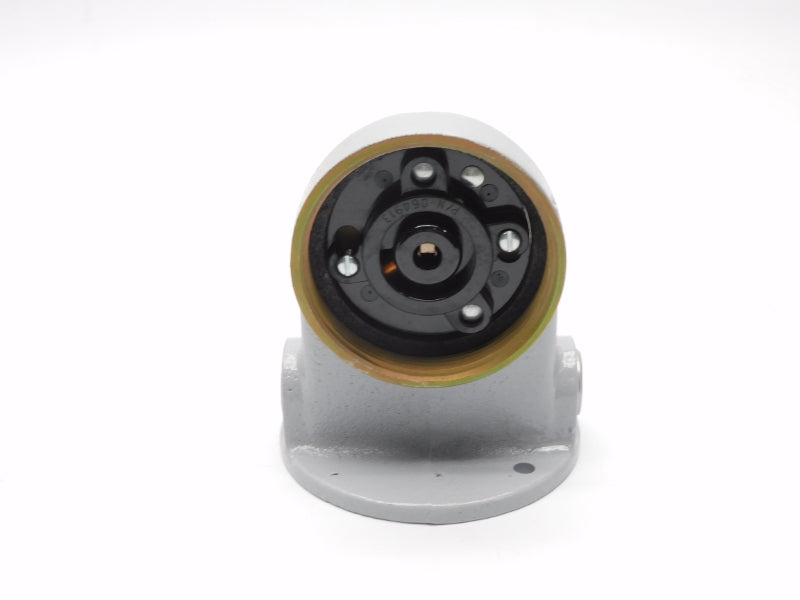

• Furnished with connection block, gasket and screws; 3 hubs plus 1 tapped opening in center of flange
• Mounting hoods for wall installations can only be used with 30 deg reflectors

Product Highlights

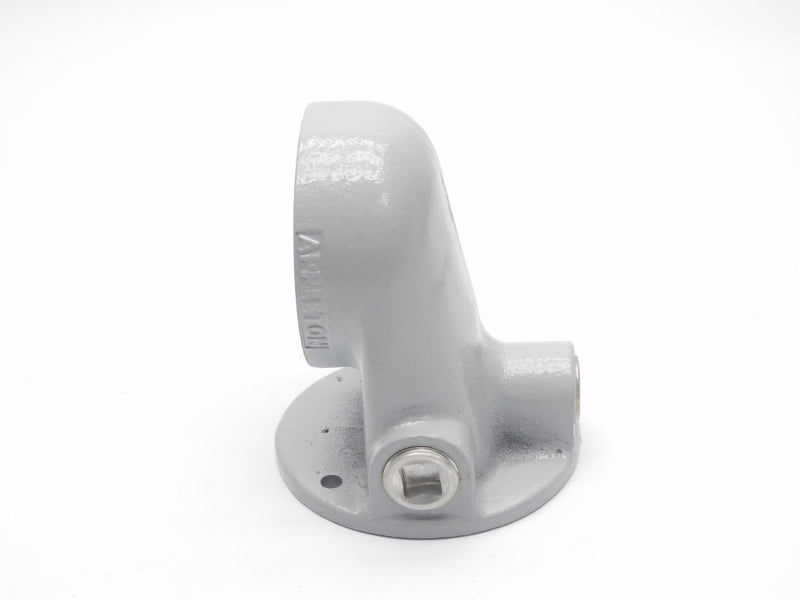

The Appleton VGAT-75 mounting hood is made of malleable iron with a chromate/epoxy powder coat/zinc electroplate finish.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: VGAT-75
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Type: Mounting Hood
• Application: For V-51 Incandescent Luminaires
• Catalog Number: VGAT75
• Country of Origin: MX
• Finish: Chromate/Epoxy Powder Coat/Zinc Electroplate
• Height: 1.35 in
• Height [Metric]: 3.4290 cm
• Lamp Type: Incandescent
• Length: 15.20 in
• Length [Metric]: 38.6080 cm
• Mounting: Stanchion
• Size: 3/4 IN Hub
• Standards: UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III
• Wall Mount: Wall Mount
• Specifications: 3/4 in Hub
• Suitable For Use With: V-51 Incandescent Luminaries, 30 deg Angle Reflectors
• Model: VGAT
• MPN: VGAT-75
