Appleton VC-75 unilets Mounting Hood 60 to 300 W 3/4 IN

Product Description

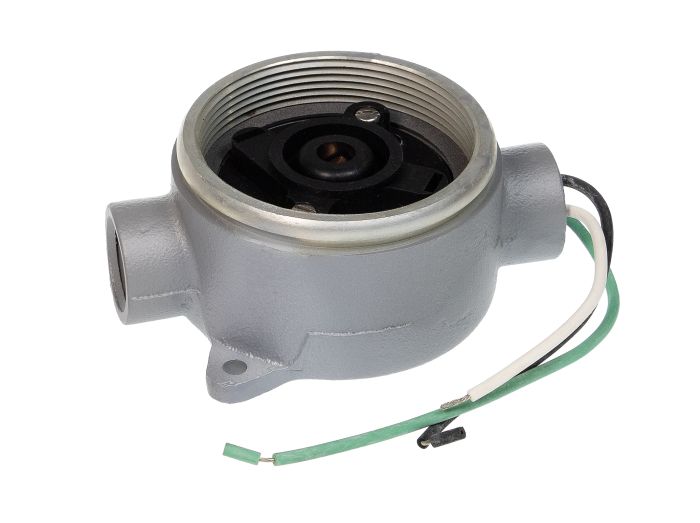

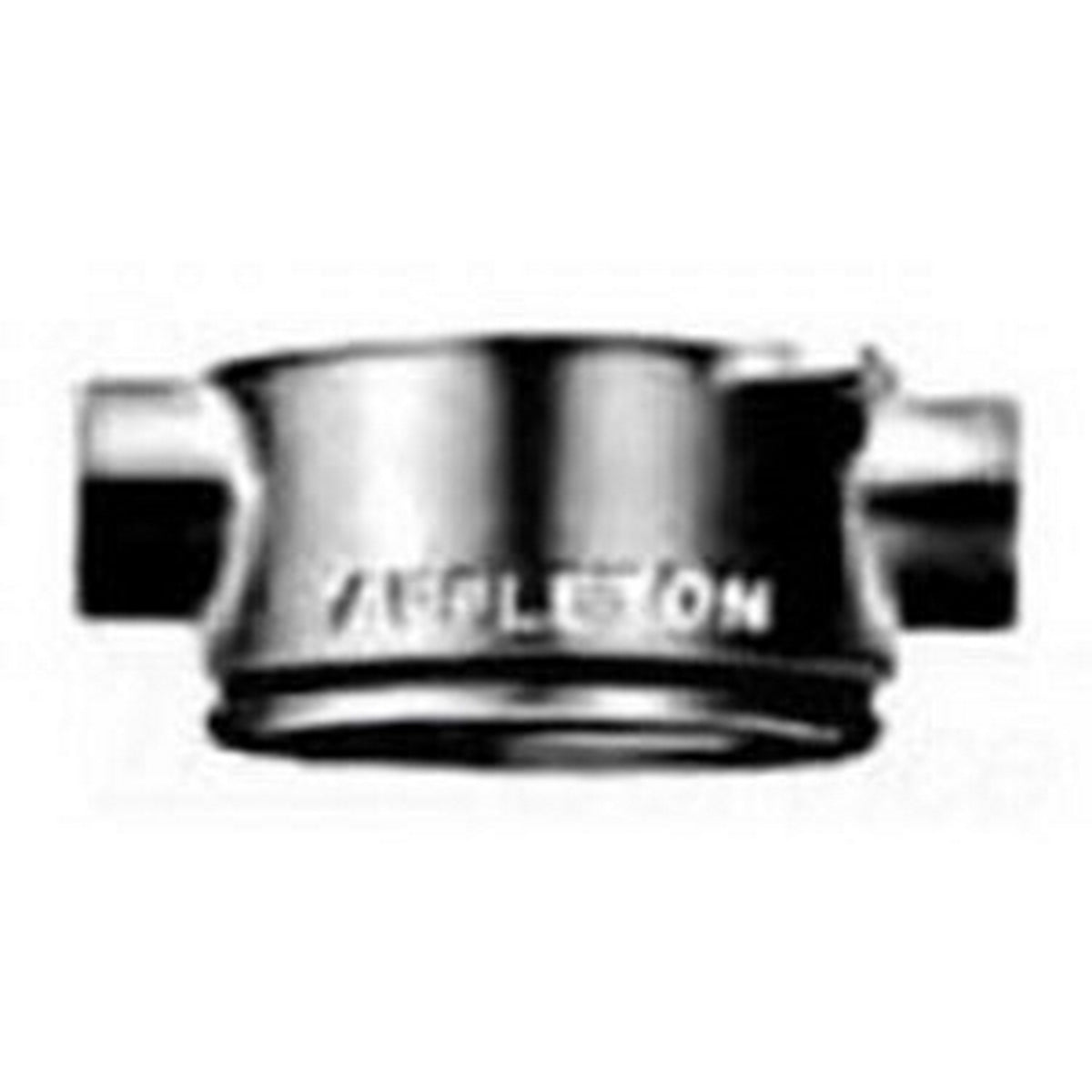

The APPLETON VC-75 UNILETS mounting hood is designed for V-51 series convertible vaportight incandescent luminaire accessories. Constructed from malleable iron with a zinc electroplate, chromate, and epoxy powder coat finish. It is suitable for use with threaded metal conduit and ideal for wet locations.

• Furnished with connection block, gasket and screws
• Feed-through hub
• Furnished with connection block for easy wiring

Product Highlights

Designed for storage areas, tunnels, subways, and chemical plants where moisture, dirt, or corrosive atmospheres are a problem.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: VC-75
• Country of Origin: MX

Technical Specifications

• Catalog Number: VC-75
• Manufacturer: Appleton
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Accessory Type: Ceiling Mounting Hood
• Application: For V-51 Series Convertible Vaportight Incandescent Luminaire Accessories
• Enclosure: NEMA 3R
• Lamp Type: 60 - 300 WTT Medium Incandescent
• Light Technology: Review
• Material: Malleable Iron
• Mounting: Ceiling
• Special Features: Furnished with connection block, gasket and screws; Feed-through hub; Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; For use with threaded metal conduit; Fixtures suitable for use in wet locations; Enclosed and gasketed lighting fixtures for use in storage areas, tunnels, subways, chemical plants and other areas where moisture, dirt or corrosive atmospheres are a problem
• Standard: NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428
• UPC: 781381705752
• GTIN: 00781381705752
• Item Type: Mounting Hood
• Size: 3/4 IN in
• IP/NEMA Rating: NEMA 3
• Family Series: Appleton Light Fixtures
• For Use With: Appleton Light Fixture
• Fixture Wattage: 60-300 W
• ARRA Compliant: C
• Buy American Compliant: N
• EU RoHS Indicator: N
• Finish: Chromate/Epoxy Powder Coat/Zinc Electroplate
• Standards: ARRA CompliantUL 1598UL 844UL File No. E10444CSA C22.2 File No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III
• UNSPSC: 39111817
• UPC 11: 78138170575
• UPC 12: 781381705752
• Suitable For Use With: V-51 Incandescent Convertible Vaportight Luminaries
• Type: Ceiling Mount Feed Through
