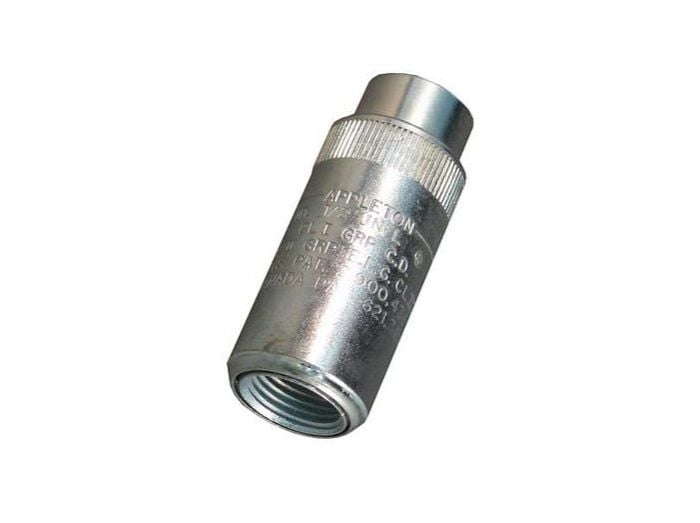

Appleton UNYL-75 Male Union 3/4 inches

Product Description

The Appleton UNYL-75 male union is used for joining conduit and connecting conduit to enclosures. It facilitates modifications and permits the removal of enclosures without turning or removing conduit. It is also available as expansion unions, which compensate for the expansion and contraction of conduit.

• Explosionproof, dust–ignitionproof
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

The Appleton UNYL-75 male union is ideal for use in restricted areas, such as the wiring of pumps, motors, and other equipment.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UNYL-75

Technical Specifications

• Manufacturer Part Number: UNYL-75
• Product Series: UNY
• Family Series: Appleton Fittings, UNY Series
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Male to Female
• Angle: Straight
• Trade Size: 3/4 "
• Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Material: Steel
• Composition: Metallic
• Protection Rating: Dust-Ignition Proof, Explosion Proof
• Hazardous Location: Yes
• Approvals: CSA, UL
• Comments: For use with threaded rigid metal conduit and IMC
• Finish: Zinc Electroplated
• UNSPSC: 39131707
• Application: For connecting conduit to enclosure
• Size: 3/4
• Series: UNY
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Standards: UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181
