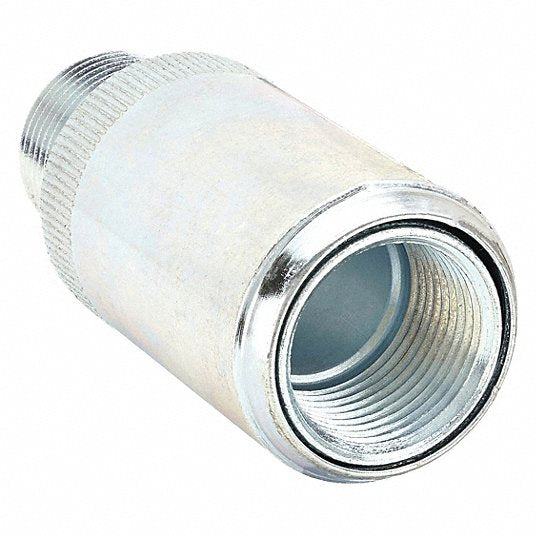

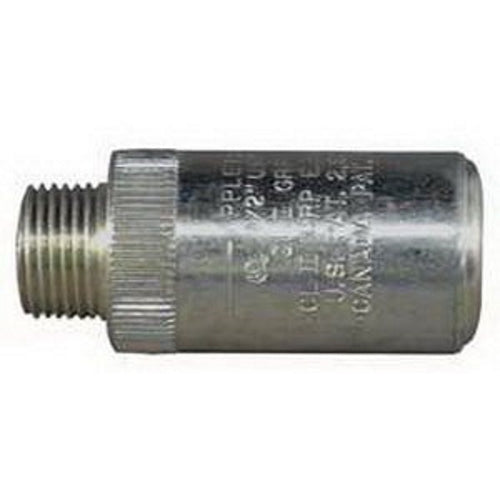

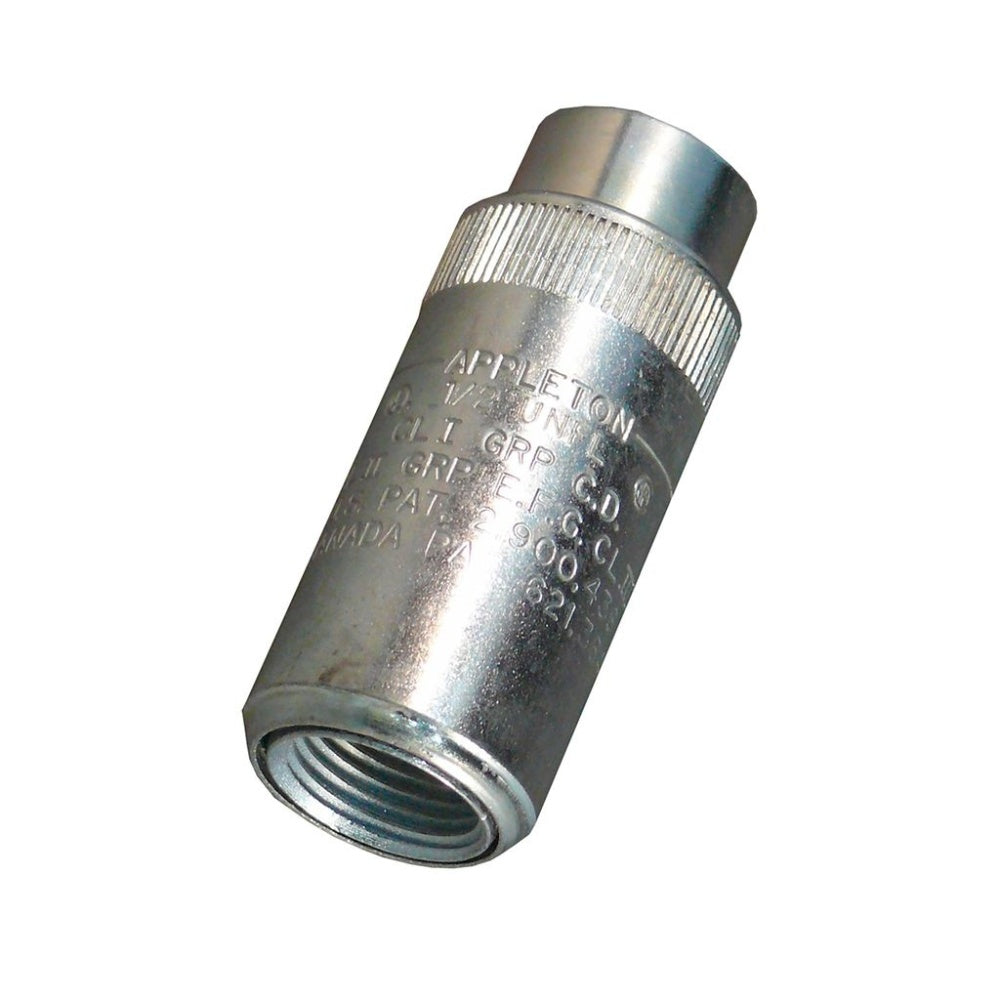

Appleton UNYL-50 Expansion Union, 1/2 inches, Male/Female, Steel

Product Description

The APPLETON UNYL-50 is an expansion union, 1/2 Inch, Male/Female, Steel, Long, Conduit to Conduit, Explosion-Proof & Dust-Ignitionproof. It connects threaded RMC and IMC conduit to electrical boxes and has a telescoping piston that extends and retracts to compensate for length changes of conduit.

• Explosion-Proof
• Dust-Ignitionproof
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

Ideal for use in restricted areas, such as the wiring of pumps, motors, and other equipment. Suitable for use in hazardous locations where flammable gases, vapors, powdered metals, or dust is present.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UNYL-50
• Country of Origin: Mexico

Technical Specifications

• Diameter: 1/2 in
• Material: Steel
• Component: Union
• Manufacturer: Appleton
• Brand: APPLETON ELECTRIC
• Trade Size: 1/2 in
• Ends - Hazardous Fittings: 1/2 in FNPT x 1/2 in MNPT
• Connection Type: Threaded
• Connection Orientation: Straight
• Insulated: Yes
• Overall Height: 1-3/16 in
• Overall Width: 1-3/16 in
• Overall Length: 4-1/8 in
• Series: UNYL
• Finish: Electroplated
• Thread Gender: Female to Male
• Thread Type: NPT
• Hazardous Location Rating: Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
• Standards: CSA C22.2 No. 25; CSA C22.2 No. 30; CSA Certified File 065181; UL 1203: 886; UL Listed File E34997
• Manufacturer Part Number: UNYL50
• Applications: For Connecting Conduit To Enclosure
• TC Connection: Male Threaded
• Type: UNF Long Expansion Union
• Sub Brand: UNILETS
• Length: 4.11 Inch
• Outside Diameter: 1.19 in
