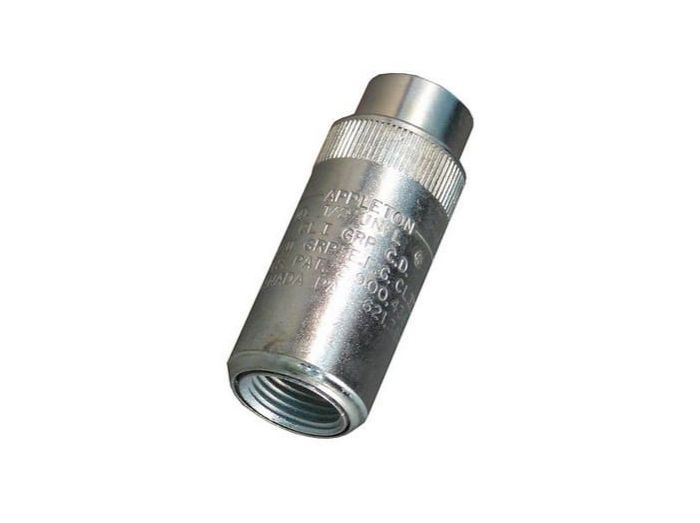

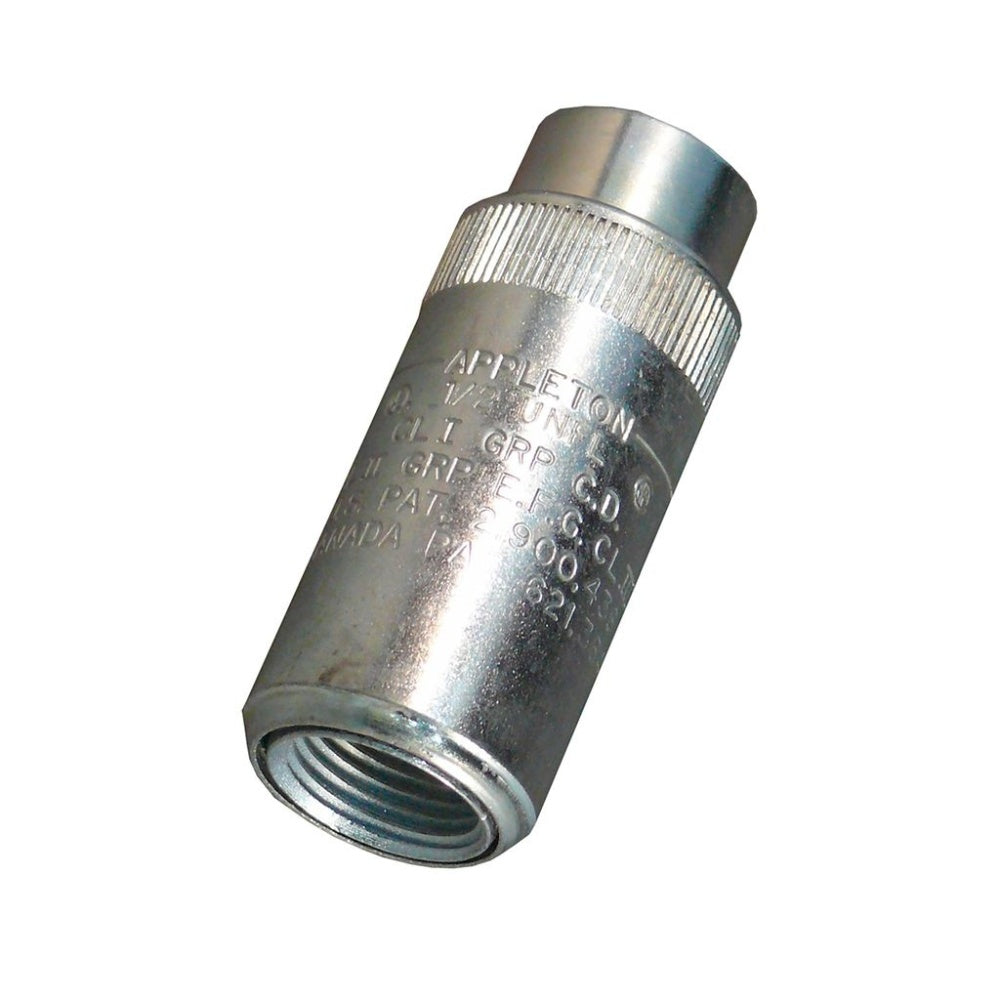

Appleton UNYL-100 Conduit Union 1 in

Product Description

The Appleton UNYL-100 conduit union is designed for connecting conduit to enclosures. Featuring a smooth, rounded integral bushing in each hub to protect conductor insulation. Accurately tapped, tapered NPT threads ensure tight, rigid joints and ground continuity. The telescoping cylinder design permits expansion or contraction.

• Smooth, rounded integral bushing in each hub to protect conductor insulation
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
• One piece design eliminates need for disassembly during installation

Product Highlights

Appleton UNYL series explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UNYL-100

Technical Specifications

• Brand: Appleton
• Part Number #: UNYL100
• SKU #: 2345058
• UNSPSC: 39131707
• Standards: UL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181
• Manufacturer Part Number: UNYL-100
• Manufacturer: Appleton
• Product Series: UNY
• Family Series: Appleton Fittings, UNY Series
• Description: Explosionproof Conduit Union, Type Long, Connection Type Male to Male, Trade Size 1 Inch, Diameter 1.75 Inch, Maximum Length 4.69 Inch, Material Zinc Electroplated Steel, Enclosure Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Male to Male
• Angle: Straight
• Trade Size: 1 "
• Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Material: Steel
• Composition: Metallic
• Protection Rating: Dust-Ignition Proof, Explosion Proof
• Hazardous Location: Yes
• Approvals: CSA, UL
• Comments: For use with threaded rigid metal conduit and IMC
• Component: Union
