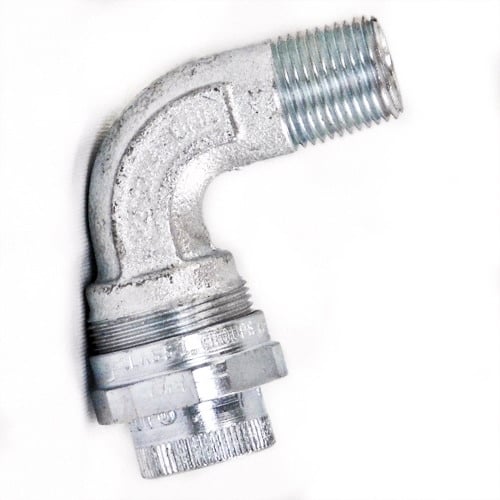

Appleton UNL50-75N 1/2X3/4 90D Union

Product Description

The Appleton UNL50-75N is a 90-degree union elbow designed for conduit applications. It features tapered female threaded connections for a secure fit. Constructed from malleable iron with a steel locknut, this elbow provides durability for indoor and outdoor uses. The triple-coat finish includes zinc electroplate, chromate, and epoxy powder coat for added protection against corrosion.

• Trade size: one-half inch by three-fourths inch.
• Used for connecting conduit to enclosures at a ninety-degree angle.
• Flexible for rigid and IMC applications.

Product Highlights

This elbow is explosionproof and dust-ignitionproof, making it suitable for various electrical environments.

Product Information

Standard Information

• Catalog Number: UNL50-75N
• Brand: Appleton Electric

Technical Specifications

• Material: Malleable Iron, Steel Locknut
• Connection Type: Tapered Female Threaded X Tapered Male Threaded
• Flexibility: Rigid and IMC
• Application: For connecting conduit to enclosure at 90-degree angle
• Country of Origin: Mexico
• Standard: UL 886, CSA C22.2
• Diameter: 1.63 inches
• Special Features: Smooth, rounded integral bushing protects conductor insulation; accurately tapped, tapered threads for tight, rigid joints and ground continuity
