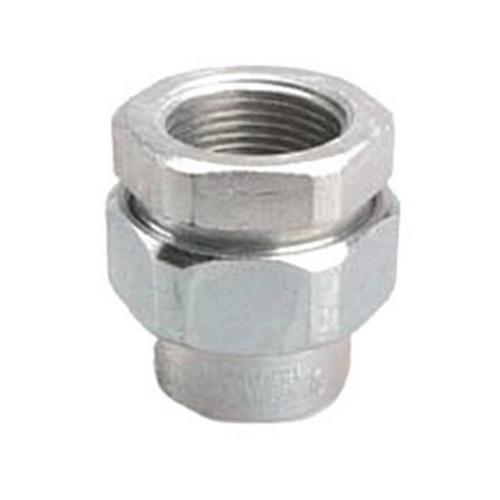

Appleton UNF-75S Female Union 3/4 inches

Product Description

The APPLETON UNF-75S is a O-Z/Gedney series UNF conduit union for joining conduit to conduit or connecting conduit to enclosures. Designed for use with IMC/Rigid conduit. It facilitates modifications and permits the removal of enclosures without turning or removing conduit.

• Allows future access and removal of system components without turning or removing conduit
• Tapered female to female Threaded connection
• Explosionproof, dust ignitionproof

Product Highlights

The UNF-75S union features smooth, rounded integral bushing in each hub protects conductor insulation and accurately tapped, tapered threads for tight, rigid joints and ground continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UNF-75S

Technical Specifications

• Brand: Appleton
• Part Number #: UNF75S
• Finish: Zinc Electroplated
• Series: UNF
• Size: 3/4 in
• Suitable For Use With: IMC/Rigid Conduit
• Type: Dust-Ignitionproof Explosionproof
• Manufacturer Name: Emerson Electric
• UNSPSC: 39131707
• Manufacturer Part Number: UNF75S
• Manufacturer: Appleton
• Product Series: OZ Gedney UNF
• Family Series: Appleton Fittings, OZ Gedney UNF Series
• Description: Female Union, 3/4in., Steel
• Connection Type: Female to Female
• Angle: Straight
• Trade Size: 3/4 "
• Material: Steel
• Composition: Metallic
• Hazardous Location: Yes
• Approvals: CSA, UL
• Net Weight: 0.34 lbs
• Gross Weight: 0.34 lbs
