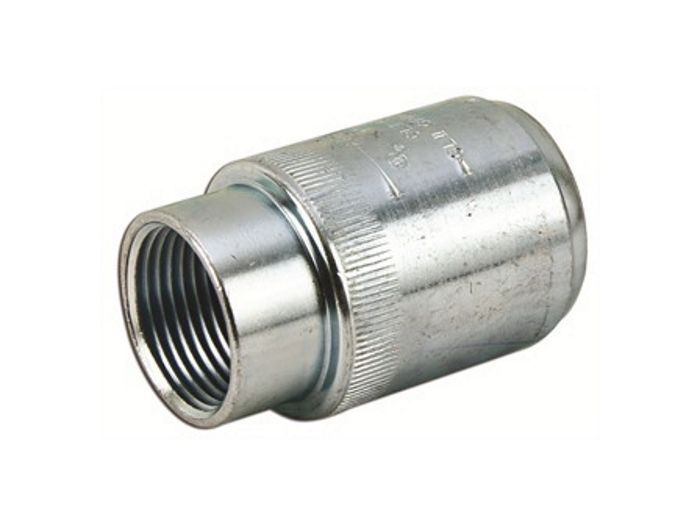

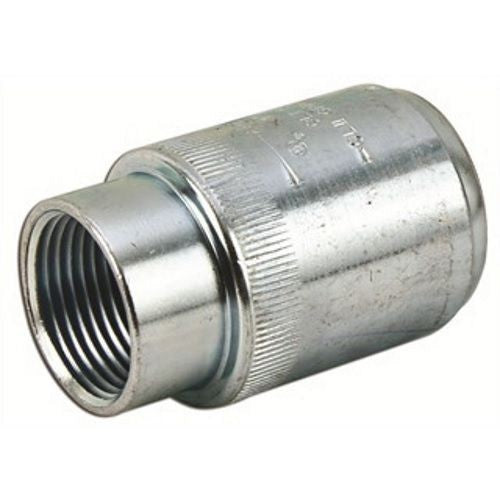

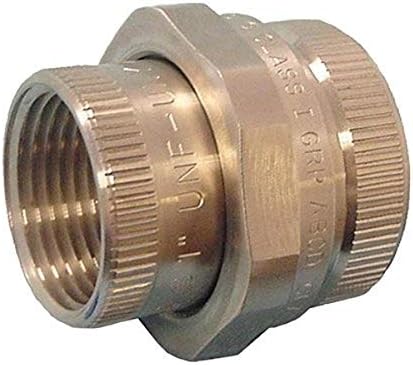

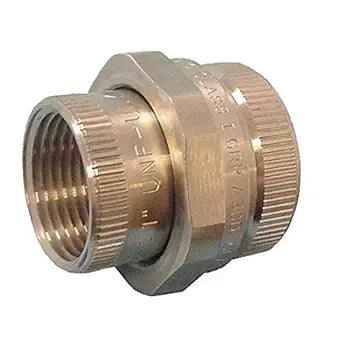

Appleton UNF-50 Union Female/Female 1/2 inches

Product Description

The APPLETON UNF-50 explosionproof and dust-ignitionproof union is used for joining conduit and connecting conduit to enclosures. It facilitates modifications and permits the removal of enclosures without turning or removing conduit. It compensates for the expansion and contraction of conduit.

• Explosion-Proof
• Dust-Ignitionproof
• Facilitates modifications and permits the removal of enclosures without turning or removing conduit

Product Highlights

This steel union features female connections, a telescoping cylinder design, and is suitable for rigid and IMC conduits.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UNF-50
• Country of Origin: MX

Technical Specifications

• Diameter: 1/2 in
• Material: Steel
• Type: Dust-Ignitionproof Explosionproof Standard
• Trade Size: 0.5 in
• Length: 2.94 Inch
• Approval: UL 886
• Brand Name: Unilet, Type UNF
• Manufacturer: Emerson Electric Co. (Appleton)
• UPC: 781381693806
• UNSPSC: 39131700
• Commodity Code: Steel Rigid Conduit Fittings
• Additional Info: Application Joining Conduit and Connecting Conduit to Enclosures, Facilitates Modifications, Permits Removal of Enclosures Without Turning or Removal of Conduit, for Expansion and Contraction of Conduit
• Size: 1/2 in
• Finish: Zinc Plated
• Standard & Approvals: CSA C22.2 No. 30, CSA 065181, UL 886 (1203) and UL E10444
• Application: For conduit expansion and contraction
• Series: UNF
• Suitable For Use With: Rigid Conduit/IMC
• Manufacturer Part Number: UNF-50
• Product Series: UNF
• Family Series: Appleton Fittings, UNF Series
• Description: UNILETS UNF Standard Expansion Union, Trade Size: 1/2 IN, Outside Diameter: 1.19 IN, Length: 2.94 IN Overall Length At Maximum Expansion, Flexibility: Rigid And IMC, Material: Steel, Connection: Female Threaded, Maximum Expansion: 1/2 IN,
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female to Female
• Angle: Straight
• Composition: Metallic
• Protection Rating: Dust-Ignition Proof, Explosion Proof
• Hazardous Location: Yes
• Approvals: CSA, UL
• Comments: For use with threaded rigid metal conduit and IMC
• Net Weight: 0.38 lbs
• Gross Weight: 0.38 lbs
• Connector Type: Union
• Thread Size: 1/2
• Thread Type: UNF
• Brand: Appleton
• Country of Origin: MX
• Outside Diameter: 1.19 in
• Standard: UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified
• Standards: UL 886UL 1203UL File No. E10444Class I, Div 1 and 2 Groups C, D, Class II, Div 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25/30CSA 065181
• Sub Brand: UNILETS
