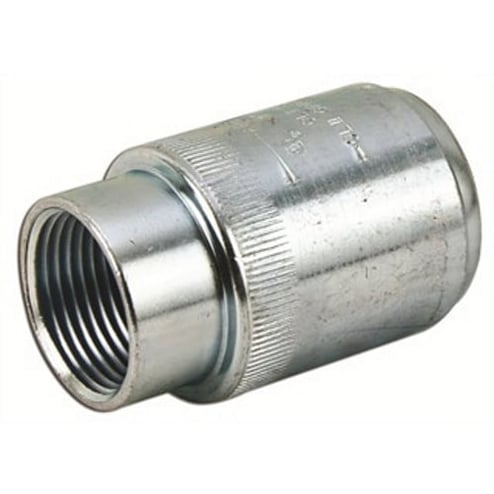

Appleton UNF-100S UNF Standard Expansion Union 1 IN

Product Description

The APPLETON UNF-100S is a 1 IN explosionproof and dust-ignitionproof steel conduit union connector. Designed for joining conduit and connecting conduit to enclosures, it features smooth, rounded integral bushings in each hub to protect conductor insulation. Accurately tapped tapered NPT threads ensure tight, rigid joints and ground continuity. It compensates for expansion and contraction in conduit runs.

• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
• Expansion unions compensate for expansion and contraction of conduit
• Female threaded connection

Product Highlights

The UNF100S is suitable for use with IMC and threaded rigid metallic conduit, providing a durable and reliable connection in hazardous locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UNF-100S
• Country of Origin: MX

Technical Specifications

• Application: For Connecting Conduit To Conduit
• Brand Name: Appleton
• Connection: Female Threaded
• Country of Origin: MX
• Finish: Zinc Electroplated
• Flexibility: Rigid And IMC
• Material: Steel
• Outside Diameter: 1.75 inches
• Special Features: Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity Expansion unions compensate for expansion and contraction of conduit Female threaded connection Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders One piece design eliminates need for disassembly during installation Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment Smooth, rounded integral bushing in each hub to protect conductor insulation Telescoping cylinder within cylinder design permits expansion or contraction
• Standard: UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified
• Sub Brand: Appleton
• Trade Size: 1 inch
• Type: Dust-Ignitionproof Explosionproof Standard
• Manufacturer: Appleton
• Part Number: UNF100S
• Length: Approximately 3.38 inches
