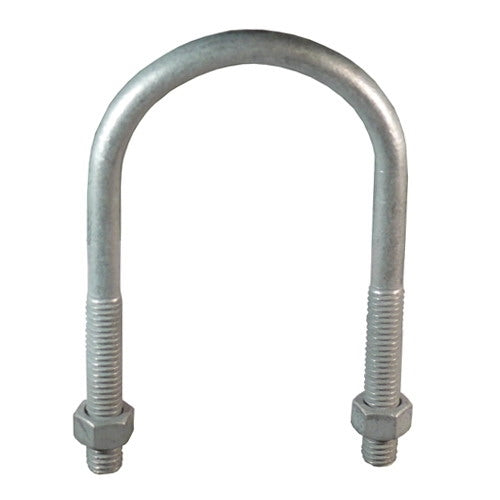

Appleton UBC75 U-Bolt With Hex Nuts 3/4 Inch

Product Description

The Appleton UBC75 U-Bolt with Hex Nuts is designed for use with EMT/IMC/Rigid Metal Conduit. Constructed from malleable iron, this heavy-duty U-bolt features a mechanically galvanized finish. It has a 3/4 inch trade size and includes a hex nut for easy installation.

• Conduit U-Bolt
• Round Bend, Heavy-Duty
• Includes Hex Nut

Product Highlights

The Appleton UBC75 U-Bolt is ideal for providing support across, parallel, or perpendicular to beam, channel, and angle supports.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UBC75
• Country of Origin: CN

Technical Specifications

• Type: Round Bend, Heavy-Duty
• Inside Width: 1.44 Inch
• Nominal Diameter: 5/16 Inch
• TPI: 18
• Thread Series: UNC
• Thread Length: 1.5 Inch
• Center Distance: 1-7/16 Inch
• Finish: Mechanically Galvanized
• Trade Size: 3/4 Inch
• Length from Guiding End to Bolt End: 2.75 Inch
• Includes: Hex Nut
• Used On: Rigid Conduit/IMC/EMT
• Application: Used across, parallel or perpendicular to beam, channel and angle supports
• Material: Malleable Iron
• Suitable For Use With: EMT/IMC/Rigid Metal Conduit
• Mfg Standards/Approvals: CSA C22.2 No. 18.4 Standard|CSA 065178
• Diameter: 5/16 in
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: UBC75
• Country of Origin: CN
• EU RoHS Indicator: C
• Gross Weight Per Pack: 0.0850 lb
• Gross Weight per Pack Metric: 0.06
• Gross Weight UOM Metric: kg
• Standards: RoHS CompliantCSA C22.2 No. 18.4 StandardCSA 065178
• UNSPSC: 39121701
• UPC 11: 78138131459
• UPC 12: 781381314596
• Brand: Appleton™
• Manufacturer: Appleton
• Size: 3/4 in
• Applications: For Rigid, IMC And EMT
