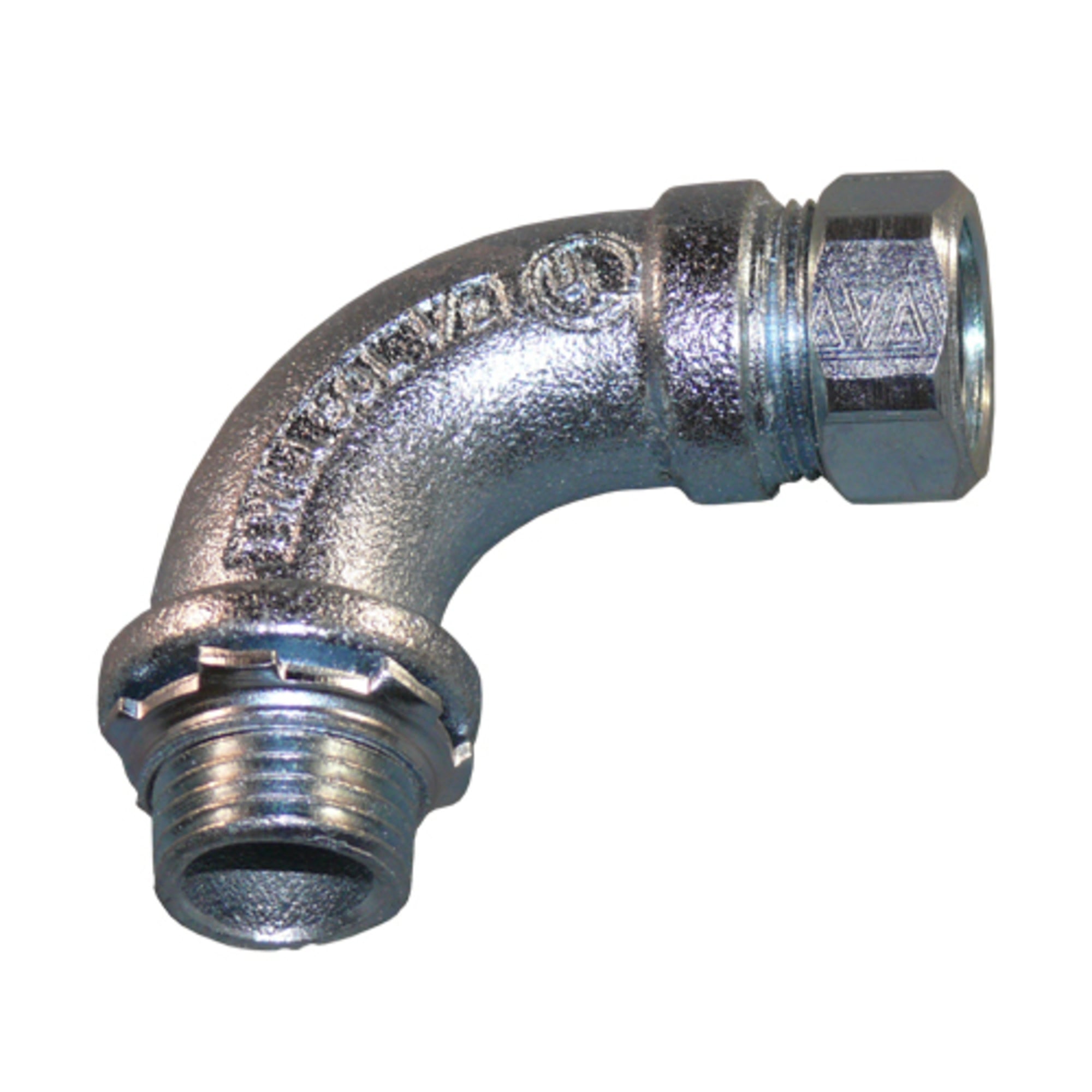

Appleton TWLL-75L 3/4 inches 90D Compression Emt Connector

Product Description

The APPLETON TWLL-75L 3/4" 90D Compression EMT Connector attaches electrical metallic tubing (EMT) to a knockout in an enclosure or outlet box, providing an angled entry point. It is constructed from malleable iron and is concrete-tight and rain-tight.

• Fitting Type: Connector
• Connection Orientation: 90 deg
• Material: Malleable Iron

Product Highlights

This 90-degree gland compression connector is suitable for EMT conduit and meets UL 514B standards.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TWLL-75L
• Country of Origin: United States

Technical Specifications

• Brand Name: Appleton
• Brand Part Number: TWLL-75L
• Conduit Type: EMT
• Connection Orientation: 90 deg
• Fitting Subtype: Long Compression
• Fitting Type: Connector
• Insulated: No
• Material: Malleable Iron
• Specifications Met: UL 514B
• Trade Size: 3/4"
• Country of Origin: United States
• Thread Length: 7/16 INCH
• Feature: CONCRETE TIGHT, RAIN TIGHT
• Inclusion: STEEL LOCKNUT
• Installation: 90 DEG GLAND COMPRESSION
• Used On: EMT CONDUIT
• Standard Package: 50
