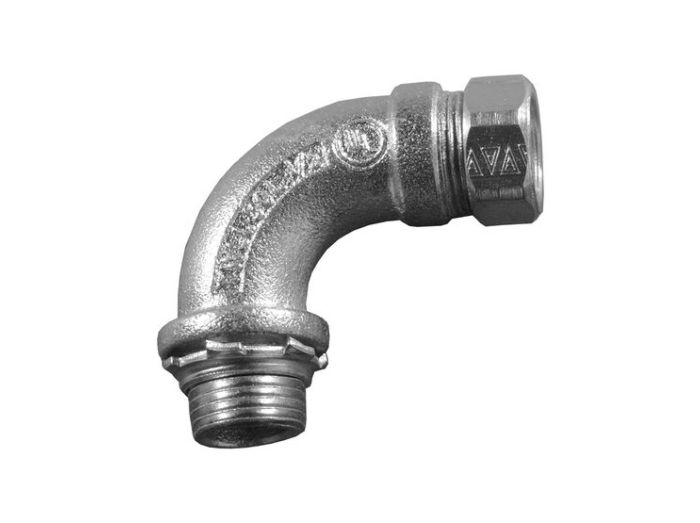

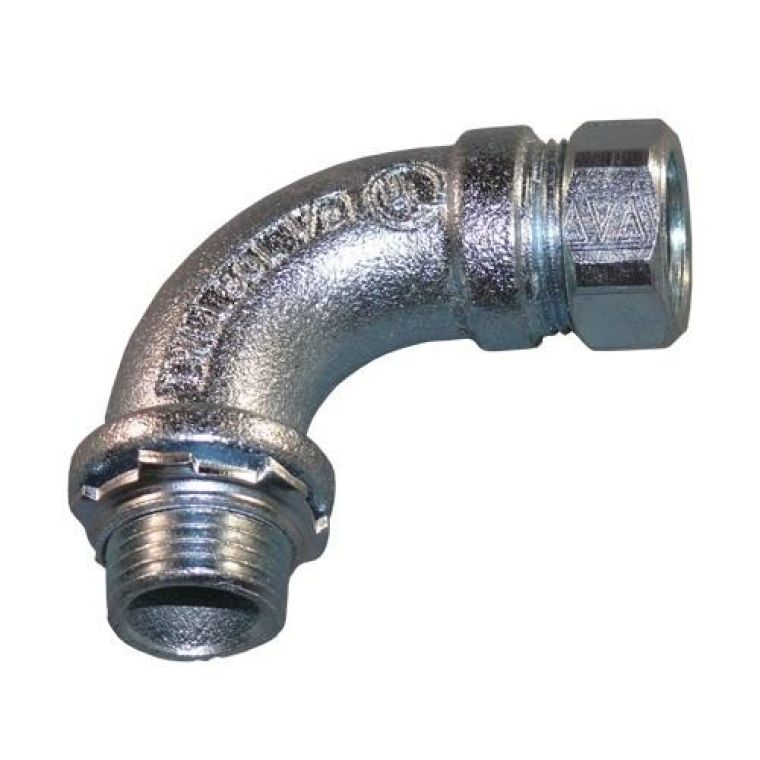

Appleton TWLL-50L emt angle compression series 1/2 inches 90 deg

Product Description

The APPLETON TWLL-50L is part of the EMT Angle Compression Series. These O Z/Gedney EMT angle compression connectors are used to secure and terminate steel EMT to knockouts and concrete tight boxes. Designed to make 90 bends and provide straight pull through in either direction.

• Connects conduit to enclosure at a 90-degree angle
• Male NPS thread connection
• Constructed from malleable iron/steel

Product Highlights

The APPLETON EMT Angle Compression Series is UL Listed and concrete-tight. It changes the direction of the conduit run and terminates the run into a box or enclosure.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TWLL-50L
• Country of Origin: MX

Technical Specifications

• Manufacturer Part Number: TWLL-50L
• Manufacturer: Appleton
• Product Series: EMT Angle Compression
• Family Series: Appleton Fittings, EMT Angle Compression Series
• Description: 90 DEG Gland Compression Long Connector, Size: 1/2 IN, Connection: Male Threaded X Compression, Material: Malleable/Steel Nut, Length: 2.06 IN, Thread Length: 0.59 IN, Width: 1.88 IN, Standard: UL Listed, For Use To Connect Conduit To Enclosure At 90 DEG
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Connection Type: Compression
• Angle: 90 °
• Trade Size: 1/2 "
• Hub Size: 1/2 "
• Hub Type: Male Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Material: Malleable Iron/Steel
• Composition: Metallic
• Protection Rating: Concrete Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: UL
• Net Weight: 0 lbs
• Gross Weight: 0.325 lbs
• Application: For Use To Connect Conduit To Enclosure At 90 DEG Angle
• ARRA Compliant: C
• Buy American Compliant: N
• Catalog Number: TWLL50L
• Connection: Male Threaded X Compression in
• Country of Origin: MX
• EU RoHS Indicator: N
• Gross Weight Per Pack: 0.3300 lb
• Gross Weight per Pack Metric: 0.15
• Gross Weight UOM Metric: kg
• Height: 0.10 in
• Height [Metric]: 2.6670 mm
• Length: 11.20 in
• Length [Metric]: 28.4480 cm
• Size: 1/2 in
• Standard: UL Listed
• Standards: UL Listed
• Type: 90 DEG Gland Compression Long Connector
• UNSPSC: 39121434
• UPC 11: 78138169280
• UPC 12: 781381692809
• Width: 8.70 in
• Width [Metric]: 22.0980 cm
• Stock Status: NONSTOCK
• Brand: Appleton
• Brand Name: Appleton Electric
• Brand Part Number: TWLL-50L
• Conduit Type: Electrical Metallic Tubing (EMT)
• Connection Orientation: 90 deg
• Fitting Subtype: Long Compression
• Fitting Type: Connector
• Specifications Met: UL Listed
