Appleton TWLL-125L 1-1/4 in 90D Long Elb Conn

Product Description

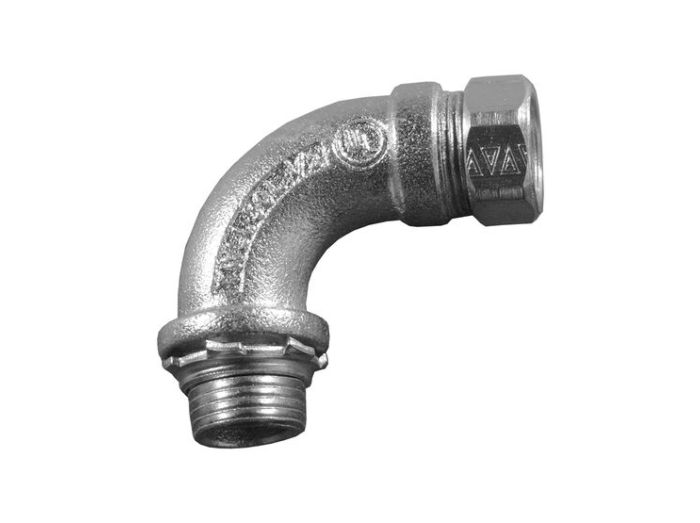

The APPLETON TWLL-125L is a 1-1/4" 90D Compression EMT Connector. It features a concrete-tight construction and includes a steel locknut. This connector is suitable for use with EMT conduit, providing a secure and reliable connection for electrical systems. It is UL 514B approved and NEMA FB-1 compliant.

• 90 degree gland compression
• Made of malleable iron
• Suitable for EMT conduit

Product Highlights

The APPLETON TWLL-125L ensures a secure connection for EMT conduits in various applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TWLL-125L

Technical Specifications

• UPC: 78138169295
• Installation: 90 DEG GLAND COMPRESSION
• Additional Information: INCLUSION STEEL LOCKNUT
• Catalog Number: TWLL-125L
• Brand Name: Appleton.
• Trade Size: 1-1/4 INCH
• Thread Length: 9/16 INCH
• Material: MALLEABLE IRON
• Constructional Feature: CONCRETE TIGHT, RAIN TIGHT
• Standard Package: 25
• Used On: EMT CONDUIT
• Catalog Description: EMT CONDUIT CONNECTOR, TYPE 90 DEG GLAND COMPRESSION, THROAT TYPE NON-INSULATED, TRADE SIZE 1-1/4 INCH, THREAD LENGTH 0.56 INCH, MATERIAL MALLEABLE IRON, CONSTRUCTIONAL FEATURE CONCRETE-TIGHT, STANDARD PACKAGE 25, APPROVAL UL 514B, USED ON EMT CONDUIT
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Compression, 90 Degree Type; Zinc Electroplated Malleable Iron, Steel (Nut) Material; 3.37 Inch; EMT Conduit Used on; 0.56 Inch Thread Length; UL 514B Approval; 3.31 Inch Diameter; 1-1/4 Inch Trade Size; Concrete Tight; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 781381692953
• SKU Name: app twll125l
• Product Series: EMT Angle Compression
• Family Series: Appleton Fittings, EMT Angle Compression Series
• Description: EMT Conduit Connector, Type 90 Deg Gland Compression, Throat Type Non-Insulated, Trade Size 1-1/4 Inch, Thread Length 0.56 Inch, Material Malleable Iron, Constructional Feature Concrete-Tight, Standard Package 25, Approval UL 514B, Used On EMT Conduit
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Connection Type: Compression
• Angle: 90 "".
• Hub Size: 1-1/4 ""
• Hub Type: Male Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Concrete Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: UL
