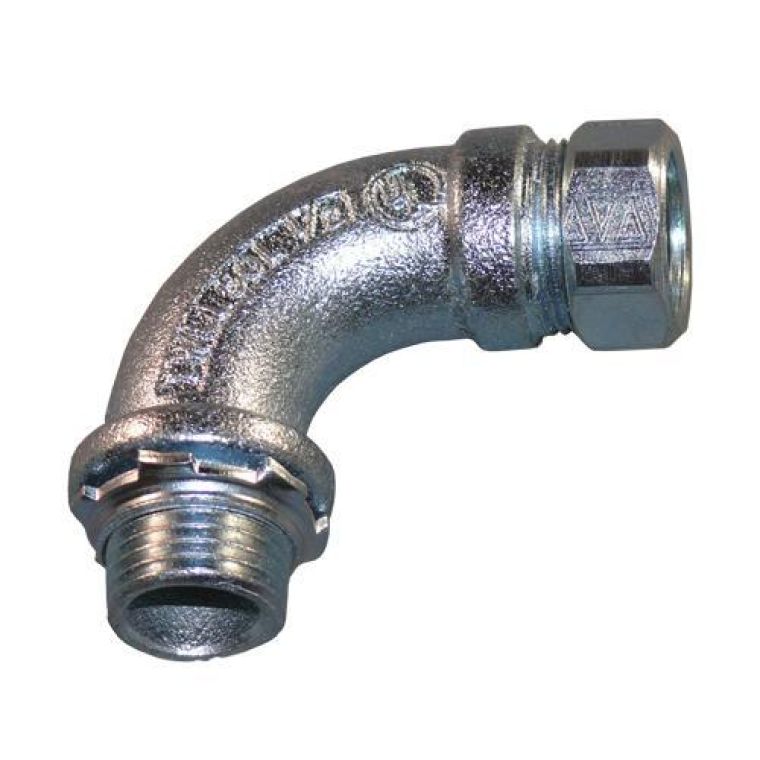

Appleton TWLL-100L 90° Gland Compression Connectors 1 inches Box of 5 Pcs

Product Description

The APPLETON TWLL-100L 90° Gland Compression Connectors attach electrical metallic tubing (EMT) to a knockout in an enclosure or outlet box, providing an angled entry point. These long compression connectors are rated concretetight and raintight per UL 514B for concrete-encased and wet installations. Constructed from zinc-plated malleable iron providing corrosion resistance.

• 90 deg long compression connectors
• Attaches electrical metallic tubing (EMT) to a knockout in an enclosure or outlet box
• Provides an angled entry point

Product Highlights

90 degree long compression connectors attach EMT to a knockout in an enclosure or outlet box, providing an angled entry point.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TWLL-100L
• Country of Origin: United States

Technical Specifications

• Brand: Appleton
• Angle: 900
• Connection Type: Compression
• MPN: TWLL-100L
• UPC: does not apply
• Country of Origin: United States
• Brand Name: Appleton
• Brand Part Number: TWLL-100L
• Conduit Type: EMT
• Connection Orientation: 90 deg
• Enclosure Rating: Concretetight / Raintight
• Finish: Zinc Plated
• Fitting Subtype: Long Compression
• Fitting Type: Connector
• Material: Malleable Iron
• Specifications Met: NEMA FB-1, UL 514B File No. E14895
• Trade Size: 1"
• Part #: TWLL100L
• Category: Conduit/Fitting
• Weight: 3.00 lbs
