Appleton TWL-100L 1 inches 90D Compression Emt Connector

Product Description

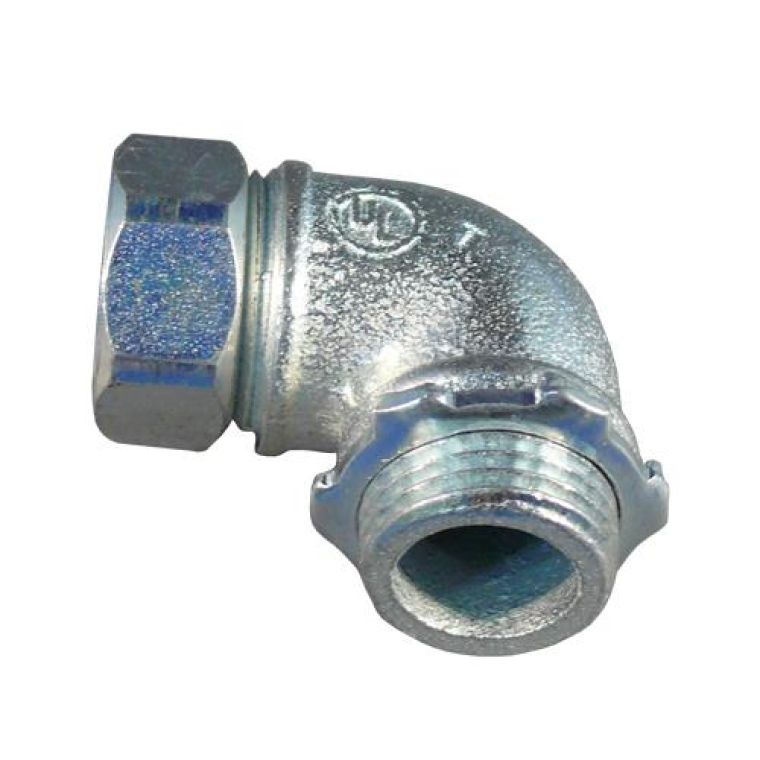

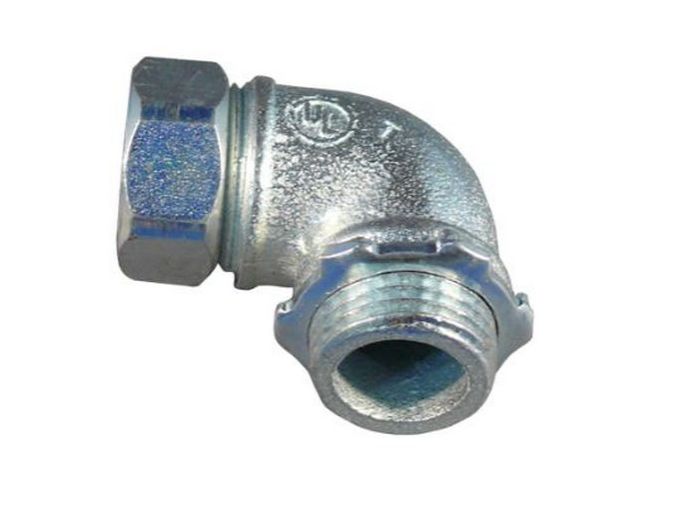

The APPLETON TWL-100L is a 1" 90D compression EMT connector. It is designed to secure and terminate steel EMT to knockouts and concrete tight boxes, making 90-degree bends and providing straight pull-through in either direction. Constructed from malleable iron with a steel nut.

• UL Listed
• Compact design
• Quick installation

Product Highlights

This EMT conduit connector features a 90-degree gland compression, non-insulated throat, and is concrete-tight. Suitable for use with EMT conduits.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TWL-100L

Technical Specifications

• Manufacturer Part Number: TWL-100L
• Manufacturer: Appleton
• Product Series: EMT Angle Compression
• Family Series: Appleton Fittings, EMT Angle Compression Series
• Conduit/Cable Type: EMT (Electrical Metallic Tubing)
• Connection Type: Compression
• Angle: 90 0
• Trade Size: 1 "
• Hub Size: 1 "
• Hub Type: Male Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Material: Malleable Iron
• Composition: Metallic
• Protection Rating: Concrete Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: UL
• Diameter: 1 in
• Insulation: Non-Insulated
• Connection Orientation: 90 deg
• Fitting Subtype: Short Compression
• Fitting Type: Connector
• Specifications Met: UL 514B
• Thread Length: 0.44 Inch
• Type: 90 Deg Gland Compression
• Used On: EMT Conduit
• Installation: 90 DEG GLAND COMPRESSION
• Additional Information: INCLUSION STEEL LOCKNUT
• Catalog Number: TWL-100L
• Brand Name: Appleton.
• Constructional Feature: CONCRETE TIGHT, RAIN TIGHT
• Category: Steel Uninsulated Short 90 Degree Compression Emt Connectors
• Full Technical Description: Compression, 90 Degree Type; Zinc Electroplated Malleable Iron, Steel (Nut) Material; 2.07 Inch; EMT Conduit Used on; 0.44 Inch Thread Length; UL 514B Approval; 1.56 Inch Diameter; 1 Inch Trade Size; Concrete Tight; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer Brand: Appleton Electric
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121434
• UPC 12 Digit: 781381692755
