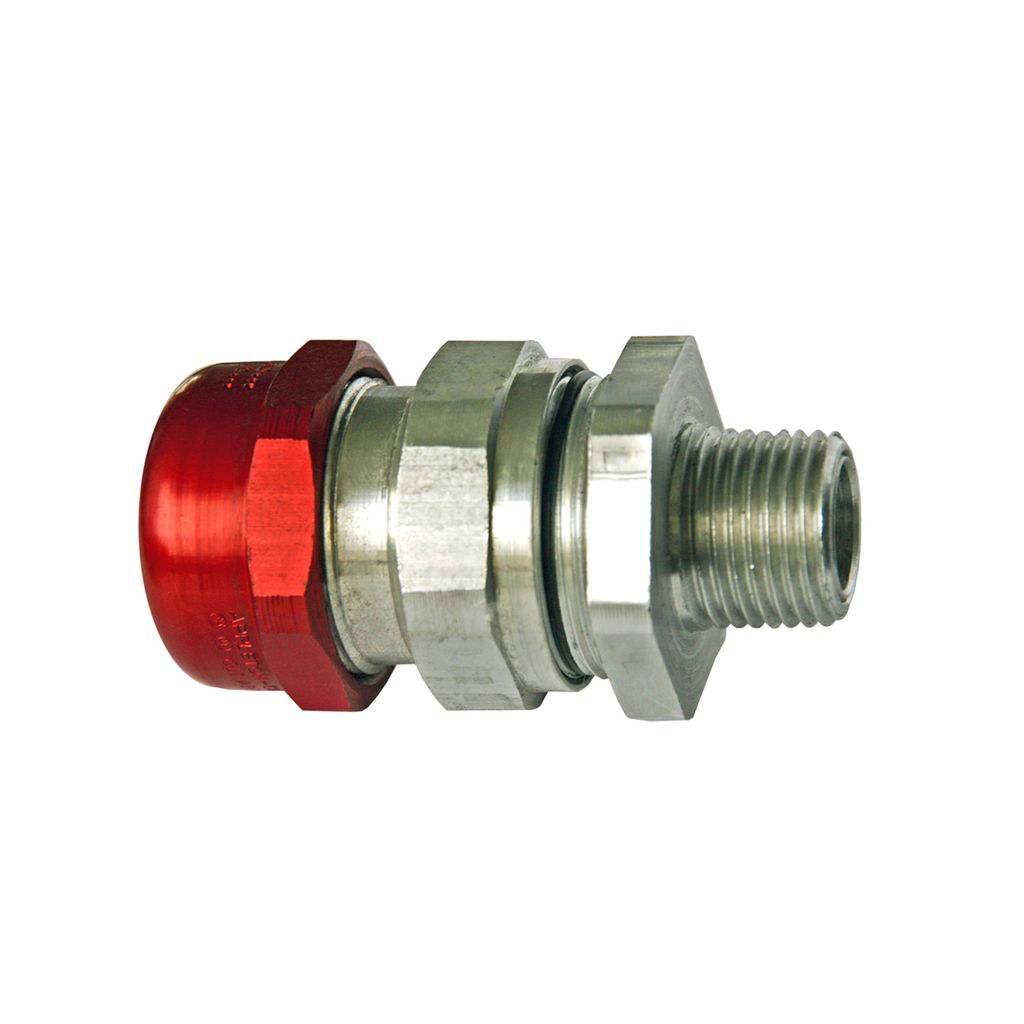

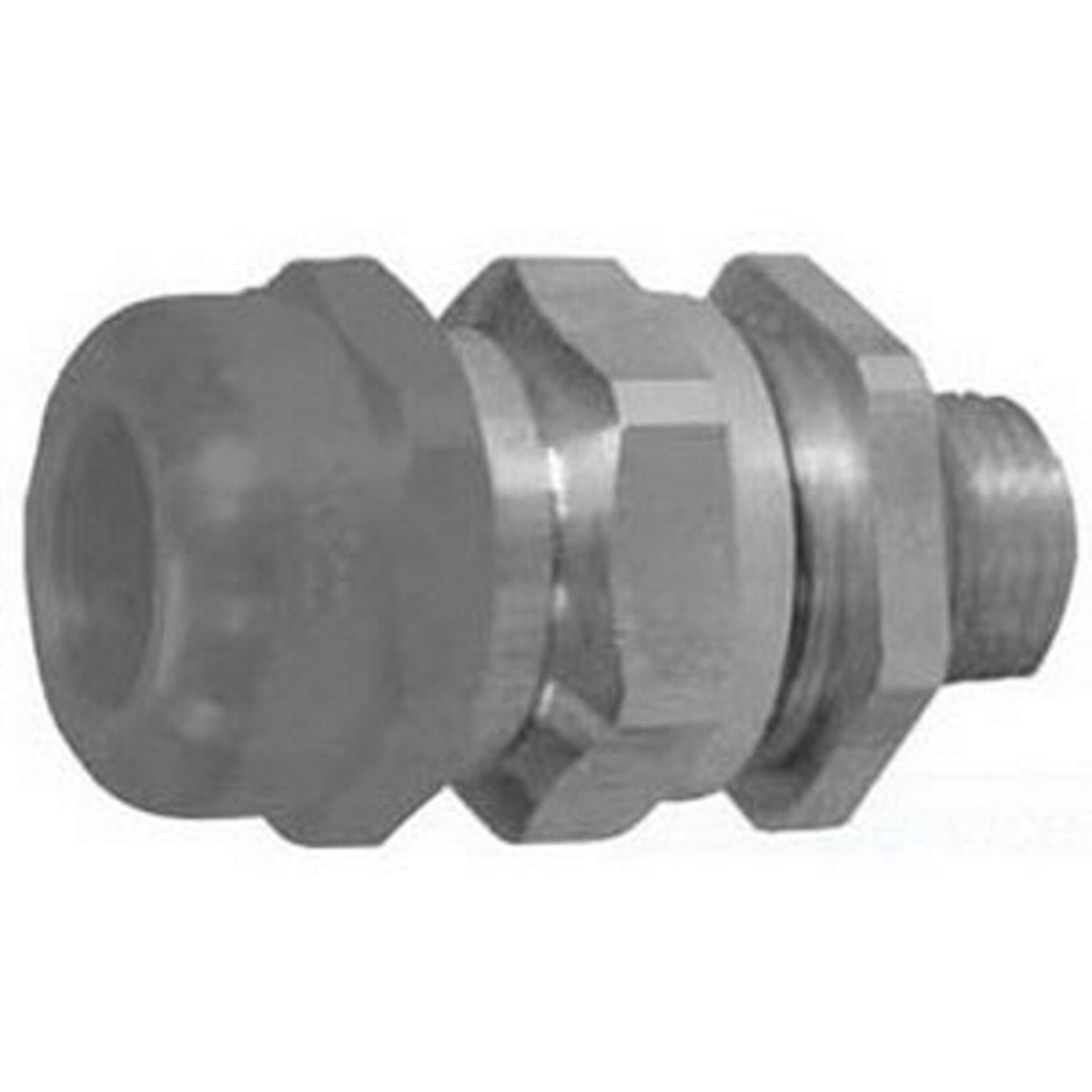

Appleton TMCX200A 2 Hazardous Location Aluminum Metal Clad Connector

Product Description

The Appleton TMCX200A is a two-inch hazardous location aluminum metal clad connector. This connector is suitable for terminating jacketed type MC cables. It forms a mechanical watertight connection while ensuring ground continuity for the cable armor. The product is designed for use in various industrial applications, particularly in hazardous environments.

• Constructed from aluminum for durability
• Designed for horizontal or vertical cable runs
• IP66 rated for protection against dust and water

Product Highlights

This connector offers a compact design with true 360-degree grounding, providing superior pull-out prevention and independent sealing for enhanced performance.

Product Information

Standard Information

• Brand: Appleton
• MPN: TMCX200A

Technical Specifications

• Material: Copper-Free Aluminum
• Enclosure Rating: IP66
• NEMA Rating: NEMA 4X
• Connection Type: NPT
• Dimensions: 3.44 inches length
• Cable Armor Diameter: 1.77 to 1.93 inches (end stop in), 1.93 to 2.09 inches (end stop out)
• Application: For Jacketed Metal Clad, MC/MC-HL, and Continuously Welded Armor Cable
