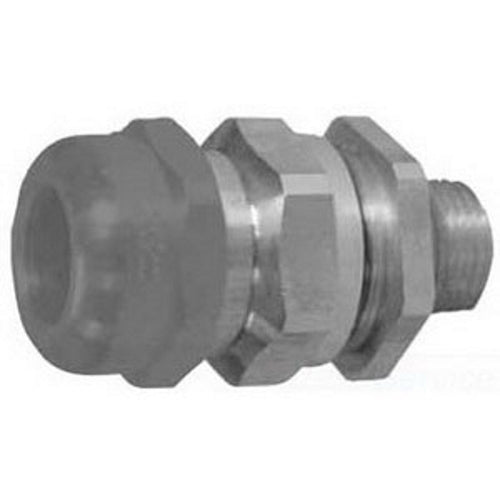

Appleton TMCX150A 1-1/2 IN Haz Loc Mc Conn Alum

Product Description

The Appleton TMCX150A is a 1-1/2 inch cable gland connector made from copper-free aluminum. This product is suitable for hazardous locations and has an enclosure rating of IP66. It offers a mechanical watertight connection, ideal for jacketed metal clad cables.

• Size: 1-1/2 inches (M50)
• Material: Copper-free aluminum
• NEMA Rating: NEMA 4X

Product Highlights

This connector is designed for jacketed metal clad and MC/MC-HL cables. It provides excellent grounding continuity and superior resistance to moisture and dust.

Product Information

Standard Information

• Brand: Appleton Electric
• MPN: TMCX150A

Technical Specifications

• Catalog Number: TMCX150A
• Connection: NPT
• Dimensions: 3 inches length
• Cable Armor Diameter: 1.32 to 1.46 inches (End Stop In), 1.46 to 1.62 inches (End Stop Out)
• Enclosure: IP66
• Application: Suitable for jacketed metal clad, MC/MC-HL, and continuously welded armor cable
• Special Features: Provides ground continuity, watertight against moisture, suitable for hazardous locations
• Approval: UL 514B, CSA C22.2, Class I, Division 1 and 2
