Product Description

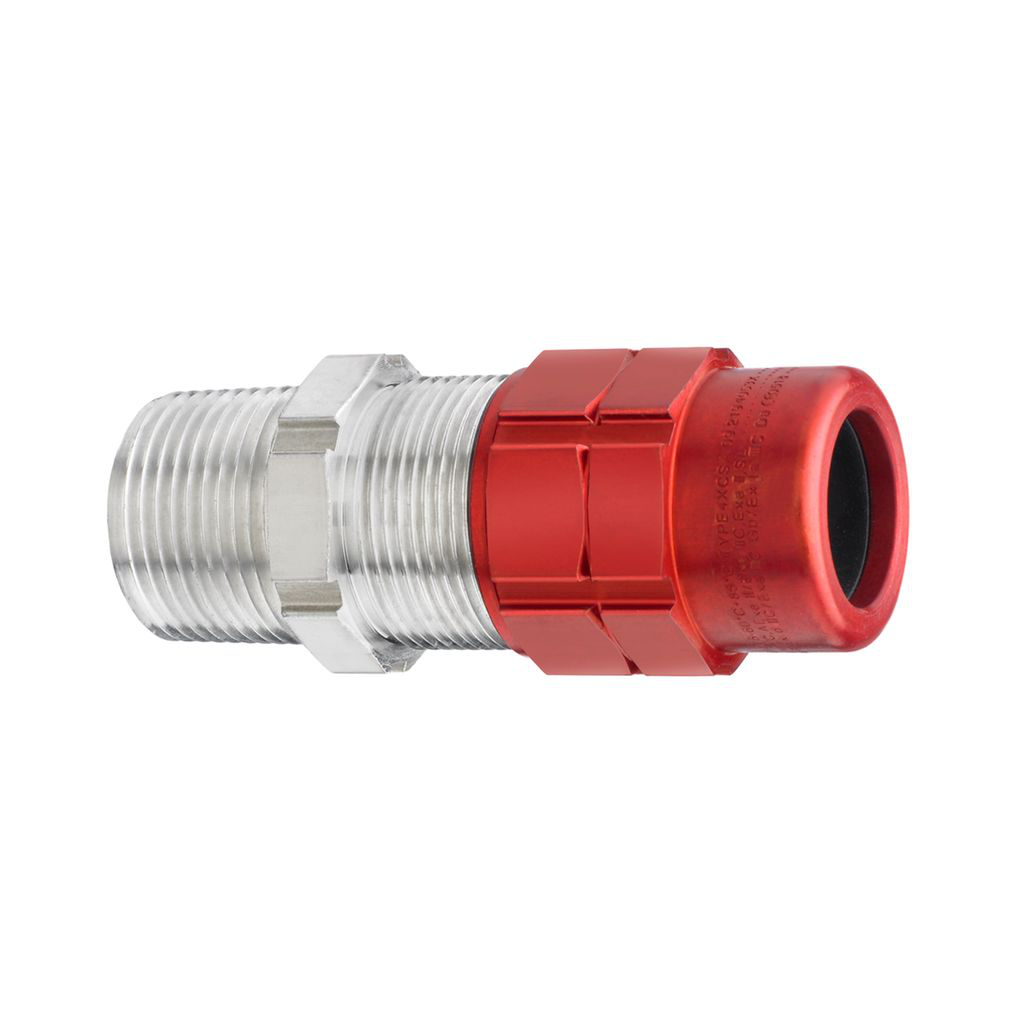

The Appleton TMC2X100118AX is a connector designed for use with metal clad (MC) cables. It features a two-piece, straight type construction and is made from copper-free aluminum. This connector provides a mechanical watertight connection and maintains ground continuity for cable armor. It is suitable for various installations where reliable sealing is essential.

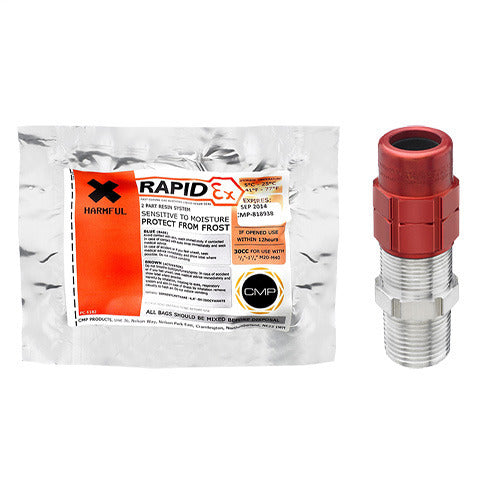

- Utilizes RapidEx high-speed liquid resin sealing compound.
- Suitable for horizontal or vertical runs.
- Offers true 360-degree grounding.
Product Highlights
This connector is particularly effective in hazardous locations and supports a temperature range of minus sixty degrees Celsius to plus eighty-five degrees Celsius.
Product Information
Standard Information
-
Brand: Appleton
-
Manufacturer: Appleton Electric
Technical Specifications
-
Catalog Number: TMC2X-100118AX
-
Material: Copper-free aluminum (body/sleeve/gland nut)
-
Hub Size: 1 inch
-
Length: 4.13 inches
-
Cable Size: 0.87 to 1.18 inches
-
Diameter: 1.99 inches
-
Application: Hazardous location
-
Approval: UL 514B/2225, CSA C22.2
