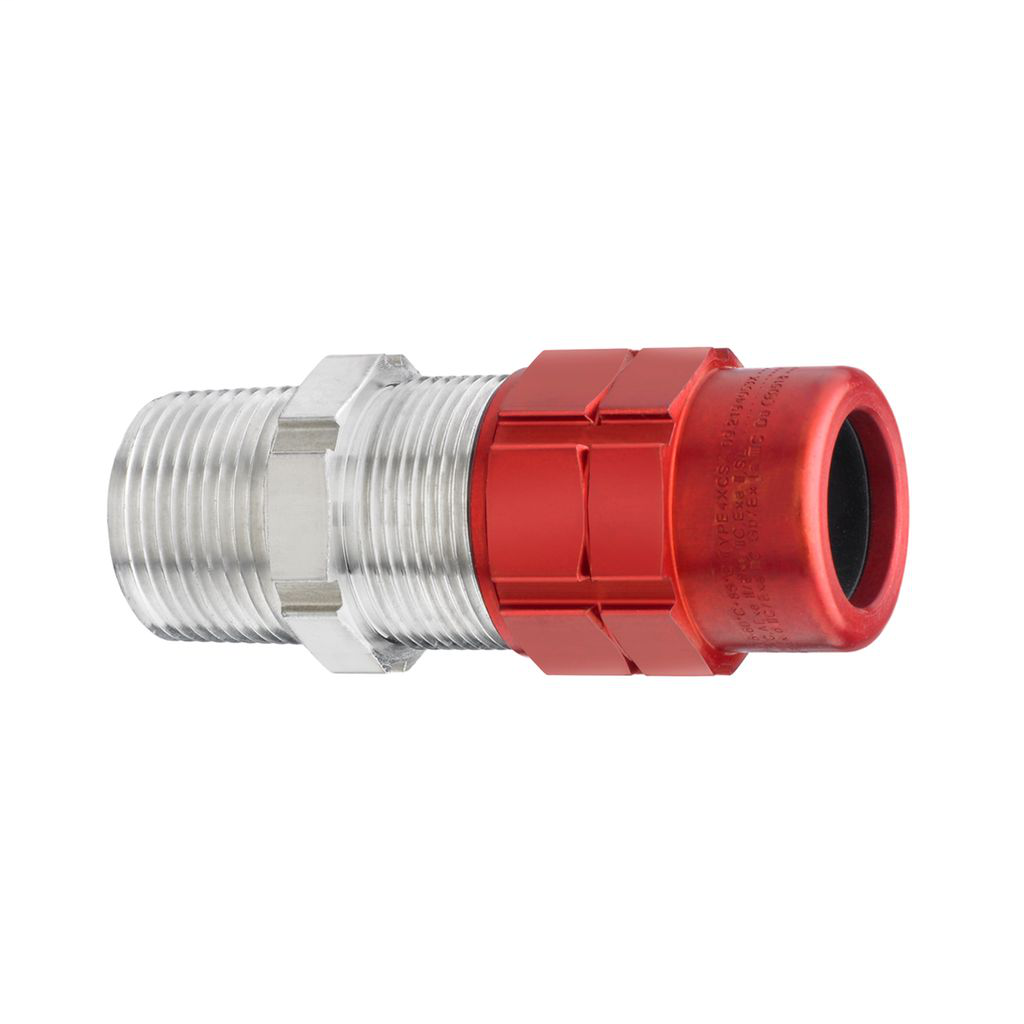

Appleton TMC2X075099AX TMC2X CBL GLND A 3/4 W/ Resin

Product Description

Appleton TMC2X075099AX is a connector designed to fit jacketed type MC cables. This product provides a watertight connection while ensuring the cable's grounding continuity. It is suitable for both horizontal and vertical installations, making it versatile for different configurations.

• Includes RapidEx high-speed liquid resin sealing compound for effective sealing.
• Features a two-piece design for simple installation.
• Offers true 360° grounding and superior pull-out prevention.

Product Highlights

This product is built for reliable performance in demanding environments, ensuring safety and compliance with applicable standards.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: TMC2X-075099AX
• Type: 2-Piece
• Hub Size: 3/4 Inch
• Length: 3.76 Inch
• Diameter: 1.63 Inch
• Continuous Operating Temperature: -60 °C to +85 °C
• Material: Copper-Free Aluminum, Stainless Steel
• Application: Hazardous Location
• Approval: UL 514B/2225, CSA C22.2
