Appleton TMC2X050075AX TMC2X CBL GLND A 1/2 W/ Resin

Product Description

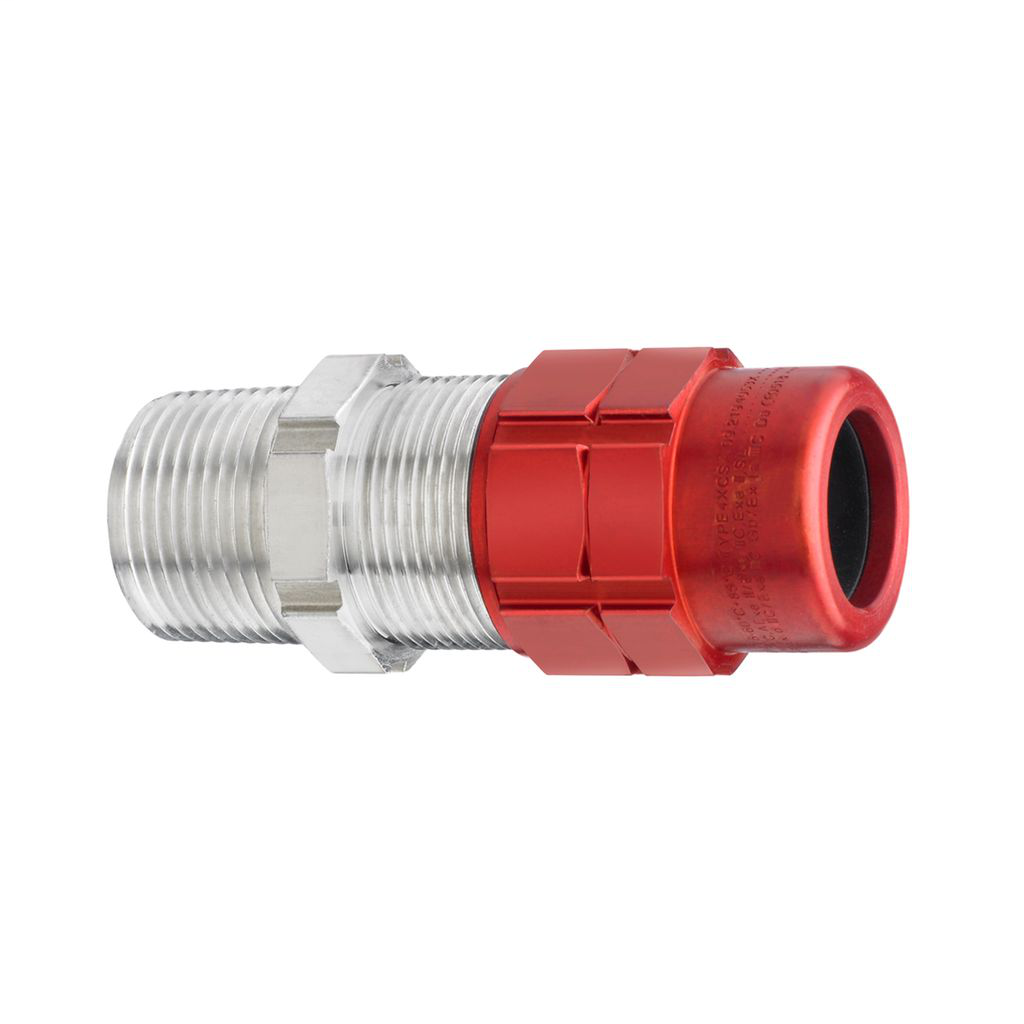

Appleton TMC2X050075AX is a connector designed for use with jacketed type MC cables. This product is essential for forming mechanical, watertight connections and providing ground continuity. It features a two-piece design for easy installation.

• Constructed from copper-free aluminum for durability
• Includes RapidEx high-speed liquid resin sealing compound
• Suitable for use with horizontally or vertically oriented runs

Product Highlights

The TMC2X connectors provide reliable connections and are used in hazardous locations. They ensure superior grounding, pull-out prevention, and accommodate a wide range of cable sizes.

Product Information

Standard Information

• Brand: Appleton
• MPN: TMC2X050075AX

Technical Specifications

• Hub Size: 1/2 inch
• Length: 3.23 inches
• Diameter: 1.32 inches
• Material: Copper-free aluminum, stainless steel
• Continuous Operating Temperature: -60 to 85 degrees Celsius
• Application: Jacketed metal clad cable
• Approval Standards: UL 514B/2225, CSA C22.2
• Trade Size: 1/2 inch NPT
