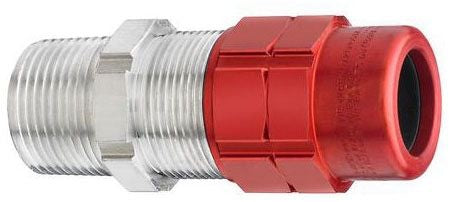

Appleton TMC2X-400425AX Tmc2X Cable Gland Aluminum 4 W/ Resin

Product Description

Appleton TMC2X-400425AX is a cable gland made of aluminum, designed for use with jacketed metal clad cables. This connector is suitable for securing cabling in hazardous locations. Its two-piece design allows for easy installation and secure mounting.

• Copper-Free Aluminum body with stainless steel grounding spring
• Rated for use in explosive environments according to UL standards
• 6.89 inches in length with a 4-inch hub size

Product Highlights

The Appleton TMC2X-400425AX is designed for durability and safety in demanding conditions. The use of halogen-free materials responds to environmental concerns while maintaining high performance.

Product Information

Standard Information

• Manufacturer: Appleton
• UPC: 78138137814

Technical Specifications

• Catalog Description: Metal clad cable connector, type 2-piece, straight, hub size 4 inches
• Construction: Copper Free Aluminum (Body/Sleeve/Gland Nut), Stainless Steel (Grounding Spring), Halogen-Free LSF-TPE (Bushing), Nylon (End Stop Washer)
• Application: Hazardous location, explosion-proof, watertight
• Dimensions: Length 6.89 inches, cable size 3.7 to 4.25 inches, diameter 5.75 inches
• Temperature Rating: Continuous operating temperature -60 to 85 degrees Celsius
