Appleton TMC2X-125137AX TMC2X CBL GL AL 1-1/4 W/ Resin

Product Description

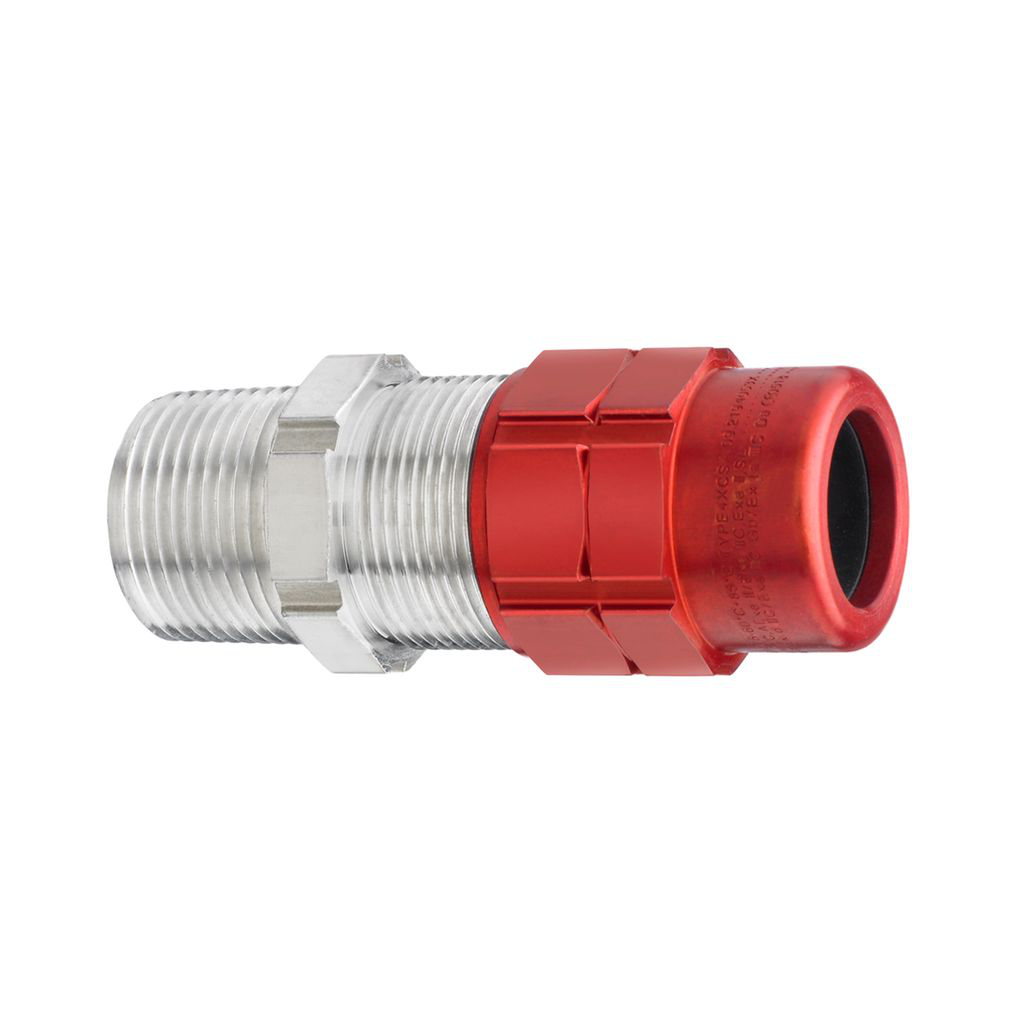

The Appleton TMC2X-125137AX is a cable connector designed for use with jacketed metal clad cables. This component provides a reliable connection by forming a mechanical watertight seal and ensuring ground continuity for cable armor. It is suitable for horizontal and vertical cable runs and features a simple two-piece design. The TMC2X connector uses a high-speed liquid resin sealing compound for optimal performance.

• Utilizes RapidEx high-speed liquid resin sealing compound.
• Designed for both horizontal and vertical runs.
• Offers true 360-degree grounding.

Product Highlights

Appleton TMC2X connectors are built for durability in hazardous locations. This unit supports easy installation and effective sealing for a variety of cable types.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: TMC2X-125137AX
• UPC: 781381378789
• Material: Copper-free aluminum, stainless steel grounding spring, halogen-free LSF-TPE bushing, nylon end stop washer
• Hub Size: 1-1/4 inches
• Length: 4.55 inches
• Diameter: 2.26 inches
• Cable Size: 1.02 to 1.37 inches
• Application: Hazardous locations
• Continuous Operating Temperature: -60 °C to +85 °C (-76 °F to +185 °F)
