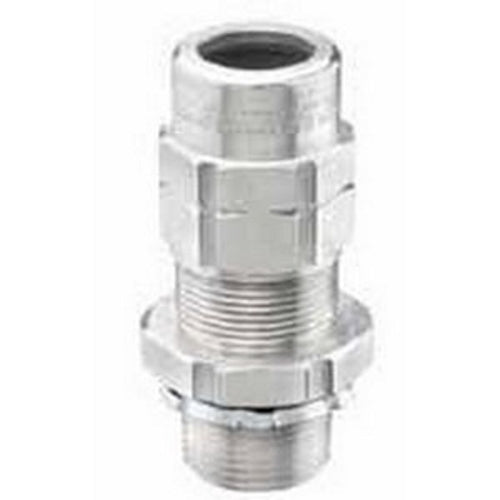

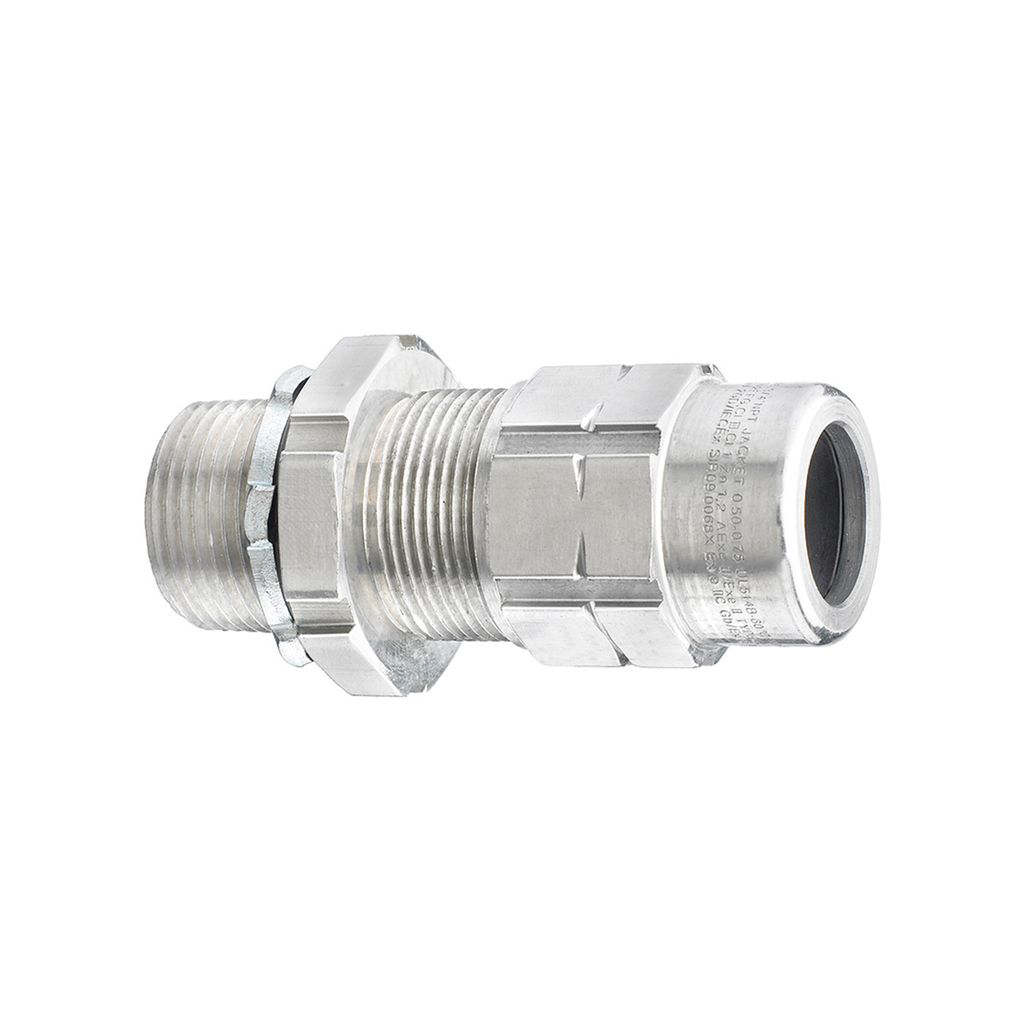

Appleton TMC2-400425A TMC2 Cable Gland A

Product Description

The Appleton TMC2-400425A is a TMC2 series cable gland connector made from copper-free aluminum. It is designed for use with jacketed type MC cable for terminating connections. This connector forms a mechanical watertight bond and ensures ground continuity for cable armor.

• Simplified two-piece design
• Integral 'O' ring face seal for IP66 protection
• True 360-degree grounding for improved safety

Product Highlights

This product is ideal for applications involving jacketed metal-clad cables. It provides a reliable connection in harsh environments and facilitates quick installation.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• MPN: TMC2-400425A
• Size: 4 inches
• Material: Copper-free aluminum
• Enclosure Rating: IP66
• NEMA Rating: NEMA 4X
• Temperature Rating: -60 to 110 degrees Celsius
• Connection Type: NPT
• Applications: For jacketed metal-clad and armored cables
