Appleton TMC2-100137A Mc Cable Gland 1 inches replacement mpn

Product Description

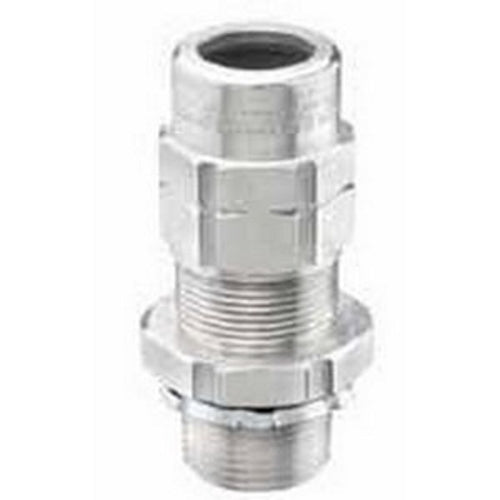

The APPLETON TMC2-100137A is an Mc Cable Gland. This TMC2 series cable connector can be used in Class I, II, and III locations and is designed for use with jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor, or continuously welded armor cables. It provides a mechanical watertight connection and ground continuity for cable armor.

• Watertight
• Class I, Division 2
• 4X and IP66

Product Highlights

The TMC2-100137A cable gland connector provides a reliable termination for jacketed type MC cable, ensuring a watertight connection and ground continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TMC2-100137A
• Country of Origin: United States

Technical Specifications

• Diameter: 1 in
• Material: Aluminum
• Diameter Range: 0.940 - 1.280 in, 1.020 - 1.370 in
• Brand: Appleton
• MPN: TMC2-100137A
• Country of Origin: United States
• Angle: 360 °
• Application: For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
• ARRA Compliant: N
• Buy American Compliant: N
• Cable Type: Type JMC/MC/Teck
• Catalog Number: TMC2100137A
• Connection: NPT
• Connection Type: NPT
• Currency: USD
• Dimensions: 2.05 in Dia Across Flat x 2.21 in Dia Across Corner x 3.32 in L
• Enclosure: IP66
• EU RoHS Indicator: C
• Gross Weight Per Pack: 0.6000 lb
• Gross Weight per Pack Metric: 0.27
• Gross Weight UOM Metric: kg
• Height: 2.30 in
• Height [Metric]: 5.8420 cm
• Length: 4.70 in
• Length [Metric]: 11.9380 cm
• NEMA Rating: NEMA 4X
• Series: TMC2
• Size: 1 IN in
• Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zones 1 And 2, AExe II AEx tA IIC; Class I, Zones 1 And 2, Exe II Ex tA IIC; Class II, Divisions 1 And 2, Groups E, F, G; Class III, Divisions 1 And 2; UL 514B, 2225, CSA C22.2 No. 174, 249506
• Temperature Rating: -60 to 110 °C
• Type: TMC2 Series Cable Gland Connector
• UNSPSC: 39121431
• UPC 11: 78138130077
• UPC 12: 781381300773
• Width: 2.30 in
• Width [Metric]: 5.8420 cm
• Stock Status: NONSTOCK
• Manufacturer: Appleton
• Cable Openings: 1.02 to 1.37 in
