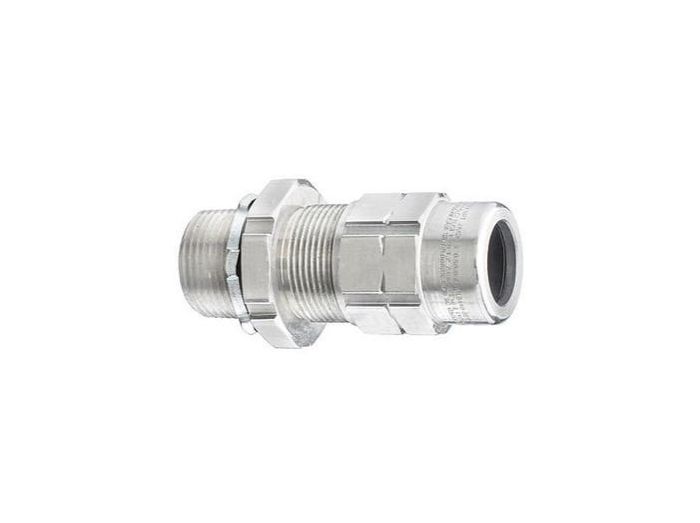

Appleton TMC2-050099A TMC2 Cable Gland Connector 1/2 in 0.69 to 0.99 in

Product Description

The APPLETON TMC2-050099A TMC2 series cable connectors are designed for use in Class I, II, and III locations. These connectors terminate jacketed type MC cable by forming a mechanical watertight connection and providing ground continuity for cable armor. They are suitable for MC/MC-HL, corrugated interlocked aluminum/steel armor, or continuously welded armor cables.

• Simplified two-piece design
• Integral ’O’ ring face seal providing - 4X and IP66
• Independent sealing and armor clamping

Product Highlights

APPLETON TMC2-050099A cable gland connectors provide watertight connections and ground continuity for cable armor in hazardous locations. They feature a two-piece design and are suitable for various cable types.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TMC2-050099A

Technical Specifications

• Material: Aluminum
• Connection Type: NPT
• Trade Size: 1/2 in
• Cable Type: MC/Teck
• Cable Openings: 0.69 - 0.99 in
• Series: TMC2
• Standard & Approvals: UL 514B, 2225 Listed, CSA 249506, C22.2 No 174 Certified, Class I, Division 2, Groups A, B, C, D, Class I, Zones 1 and 2, AExe II AEx tA IIC, Class I, Zones 1 and 2, Exe II Ex tA IIC, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, RoHs Compliant
• Application: For MC/MCHL, corrugated interlocked aluminum/steel armor, continuously welded armor cable like Teck/CLX
• Temperature Rating: -60 to 110 deg C
• Cable Diameter Range: 0.69-0.99 "
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 4X
• Split Frame: No
• Type: Bushing Grip
• Composition: Metallic
• Hazardous Location: Yes
• Approvals: CSA, UL
• Protection Rating: IP66
• Net Weight: 0.1875 lbs
• Gross Weight: 0.25 lbs
• Manufacturer: Appleton
