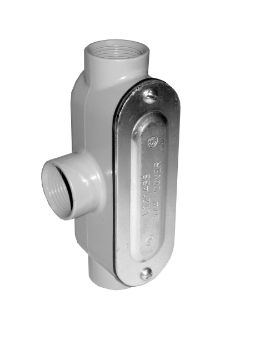

Appleton TC100DCG NER Conduit Outlet Body 1 in Hub 12.2 cu-in Capacity

Product Description

The Appleton TC100DCG NER Conduit Outlet Body is a reliable conduit fitting designed for Rigid and IMC conduit applications. This outlet body features a one inch hub and includes a cover and gasket. It has a capacity of twelve point two cubic inches and is made of die cast copper free aluminum. The epoxy powder coat finish provides durability, making it suitable for various installations.

• Use for connecting and changing direction of conduit runs.
• Designed for easy access to conductors for splicing and maintenance.
• Meets UL and CSA standards for safety and reliability.

Product Highlights

This conduit body serves as a pulling fitting and allows for convenient access to conductors.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton

Technical Specifications

• Capacity: 12.2 cu-in
• Hub Size: 1 in
• Material: Die Cast Copper Free Aluminum
• Finish: Epoxy Powder Coated
• Dimensions: 6.44 in L x 2.68 in W x 2.14 in H
• Enclosure: NEMA FB-1
• Number of Hubs: 3
• Connection Type: Thread
